Spare Parts -Vicarb

INQUIRY PDF Format

Description

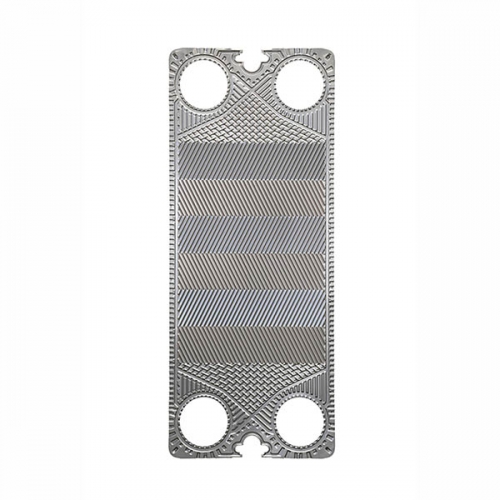

Spare Parts for Vicarb Plate Heat Exchanger (No mini order quantity, begin with ONE piece order!)

Identical repalcement Vicarb Plates and Gaskets are available for service and mantainance, Vicarb 100% identical plate heat exchanger also could be customzied produced.

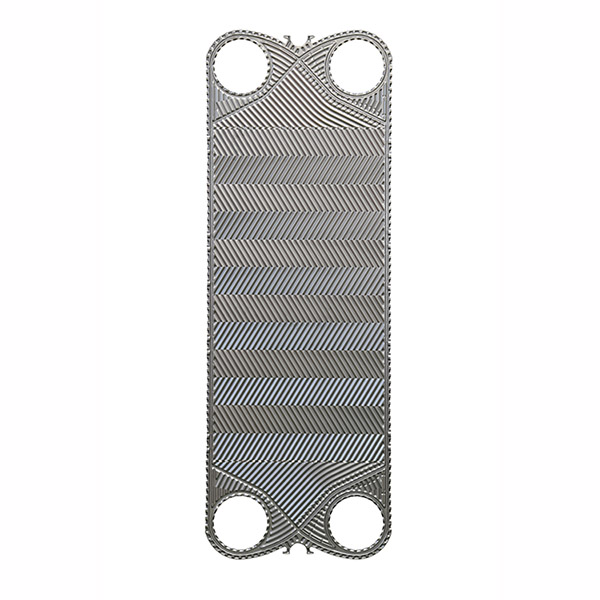

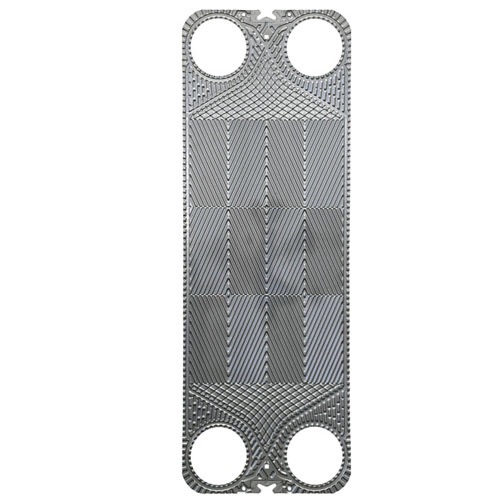

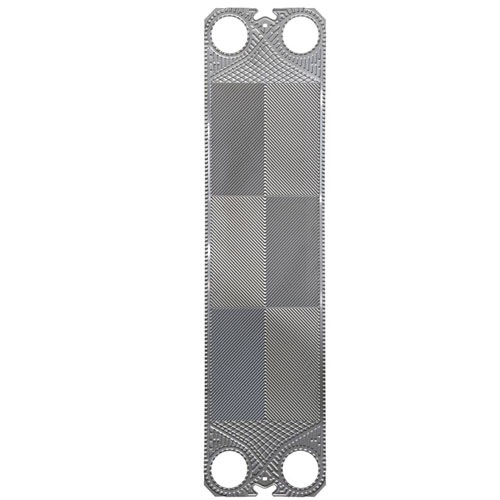

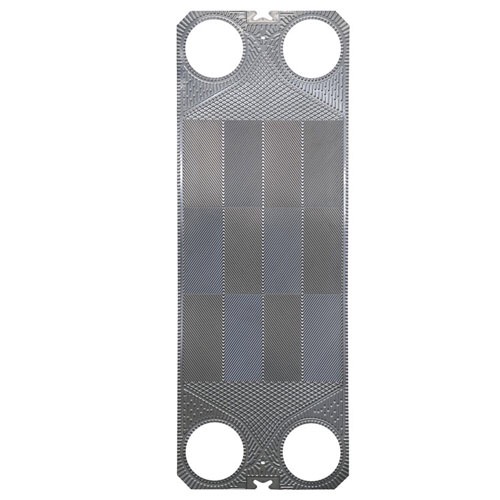

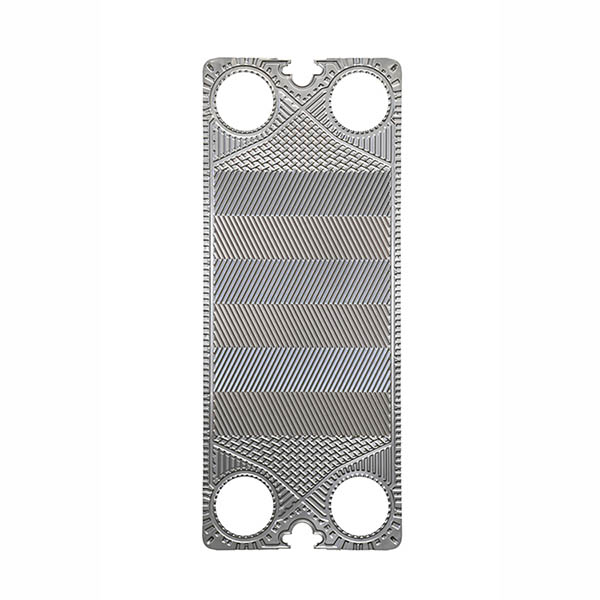

VICARB PLATE SPECIFICATION
Brand	Model	Depth of Groove (mm)	Dia. of Plate Hole (mm)	Pitch of Plate Hole (mm)	Outline Dimension (mm)	Transfer Area （㎡）
Vicarb	V4	3	φ30	430*62	500*125	0.04
	V8/VU8	3	φ49	554*100	640*188	0.08
	V13	3.5	φ70	625*130	739*241	0.13
	V20	3.5	φ70	875*130	989*241	0.2
	V28	4	φ100	882*234	1052*393	0.28
	V45	4	φ100	1302*234	1472*393	0.45
	V60	3.9	φ155	1280*310	1514*540	0.6
	V100	3.9	φ155	2000*310	2230*540	1

Applicable Material for Plates of Plate Heat Exchanger
For raw material steel sheet, SHINEHEAT only select Qualified Steel Mill as specifed as following chart, not allow any low quality raw material in production.
For Specific Material Certificate, please contact with SHINEHEAT to obtain.

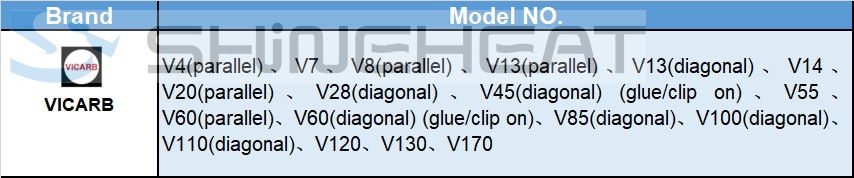

Supply List for VICARB Gaskets

Applicable Material for Plates of Plate Heat Exchanger

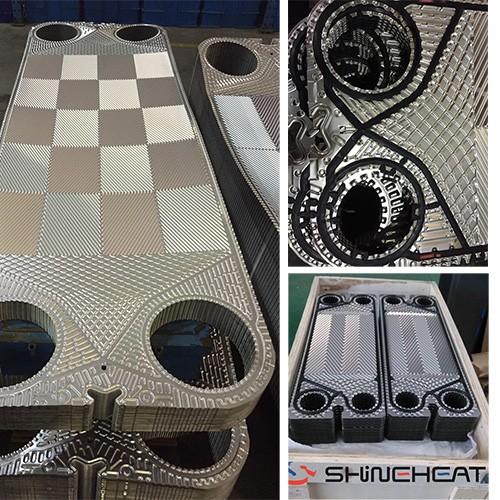

Supply Case for VICARB Gaskets

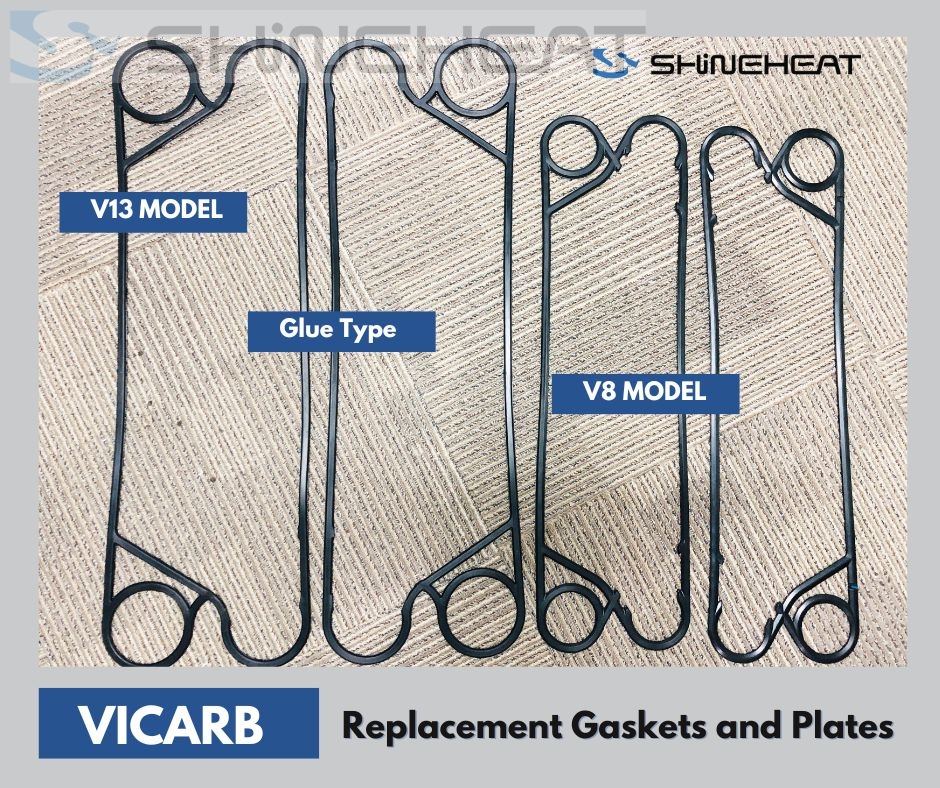

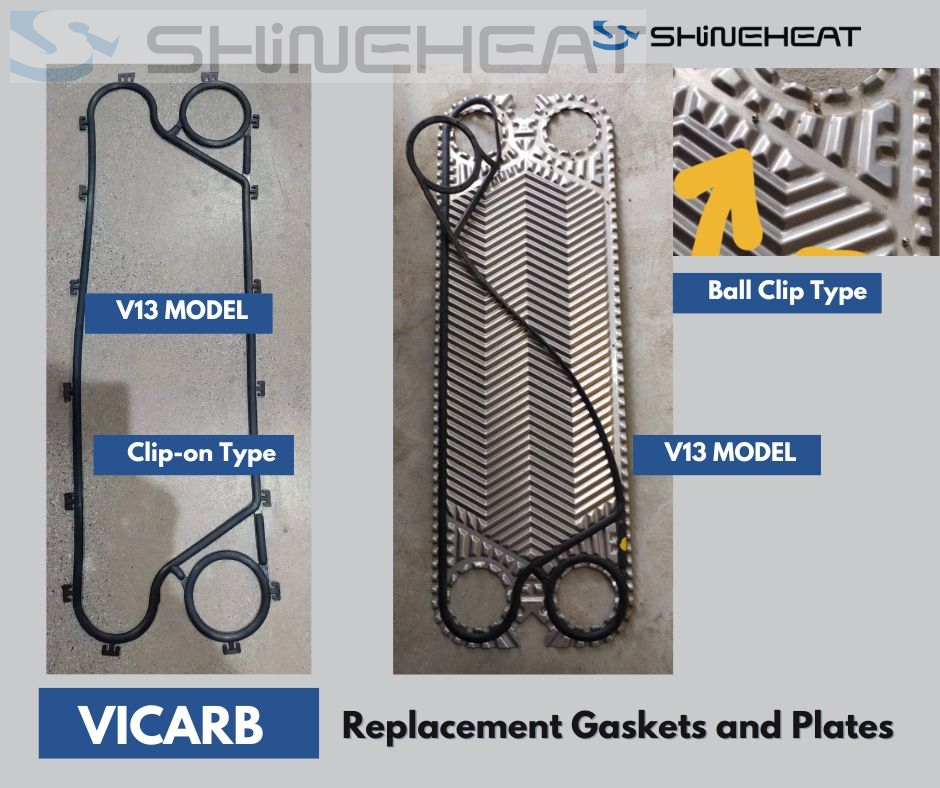

Like V13 and V8 model Gaskets of VICARB, The Glue Type and Clip-on Type both are available from Shineheat.
In some old models of Vicarb, it used "Ball Clip" Type Gaskets, which clip on the Metal Ball which attachs on the plates.
Now this type of "Ball Clip" Gaskets are very difficult to replace in view of outdated design, however, we would like to offer a solution for old gaskets replacement.
