T4 Replacement Plates & Gaskets for SPX APV

Item No.: T4

SHINEHEAT supplies aftermarket replacement plates & gaskets for SPX APV T4 plate heat exchangers. Send the full model code, existing part photographs and required quantity for configuration review.

INQUIRY PDF Format

Description

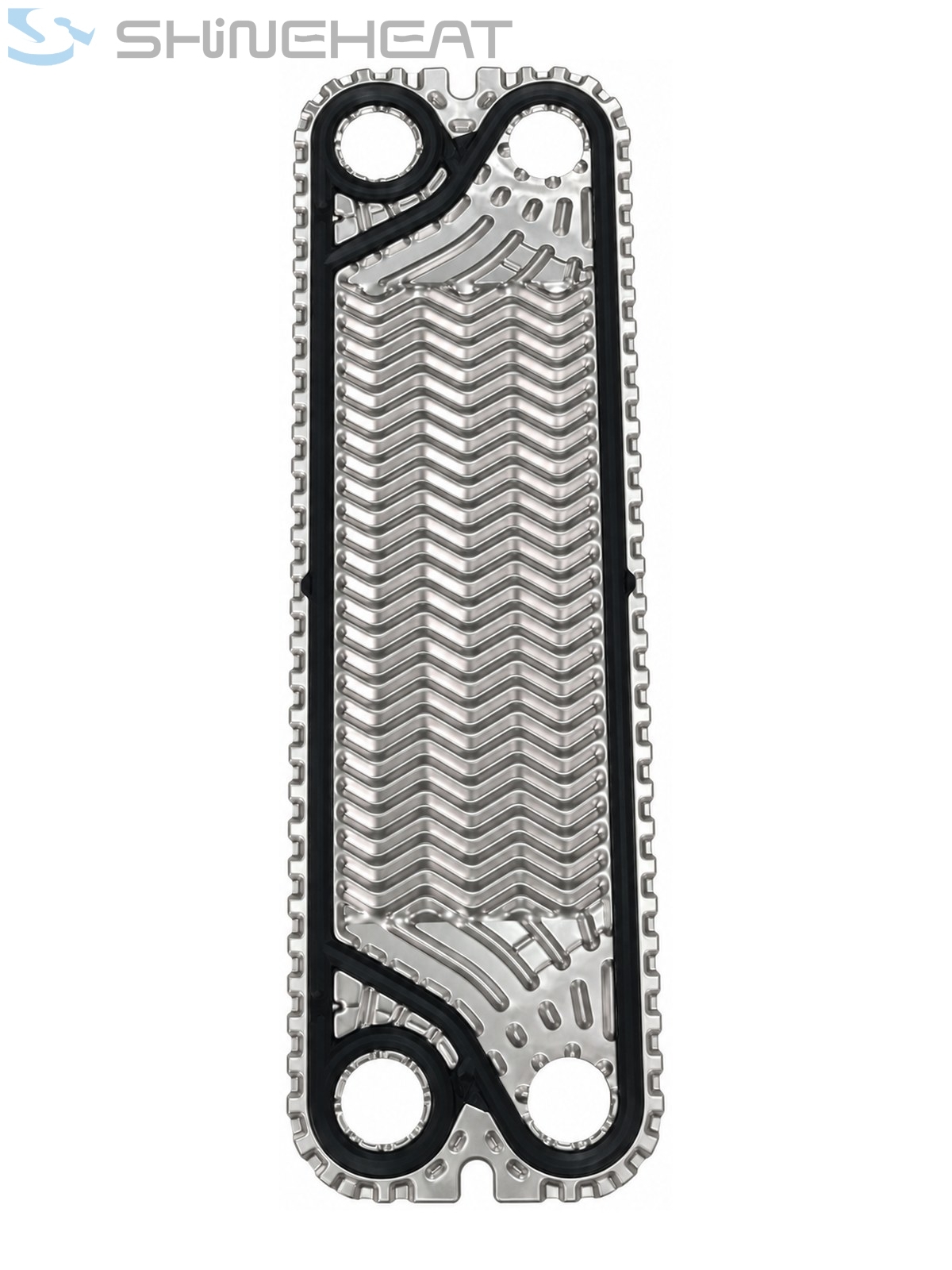

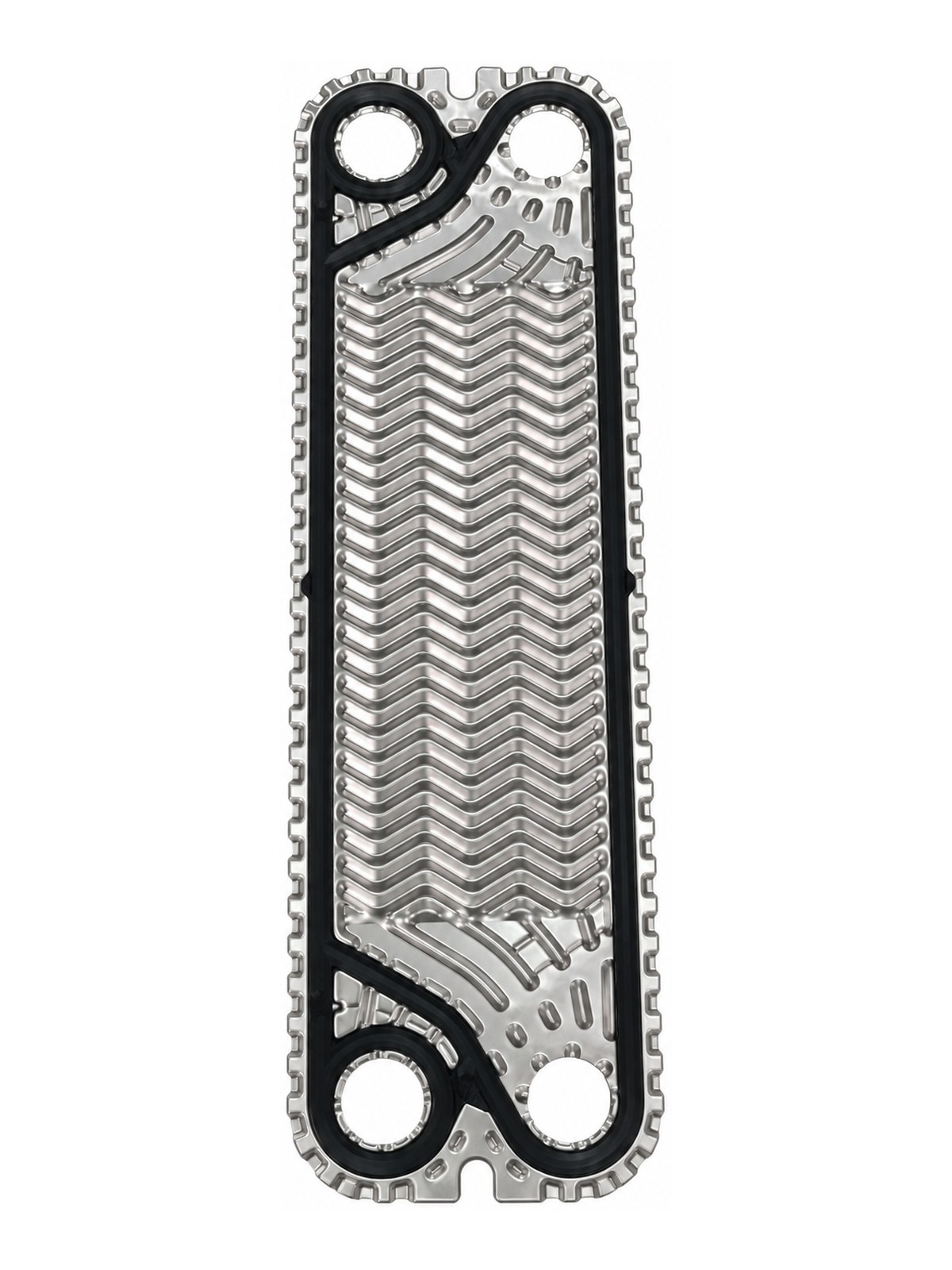

T4 SPX APV replacement plate and gasket display — T4 plate and gasket presentation image enhanced from a supplied photograph. Confirm the final configuration from the existing part and approved drawing.

T4 replacement plates & gaskets

SHINEHEAT supplies aftermarket replacement plates & gaskets for SPX APV T4 plate heat exchangers. Send the full model code, existing part photographs and required quantity for configuration review.

The T4 reference shows a corrugated plate with a fitted gasket. Match the complete gasket route, port rings and plate pattern to the existing assembly.

Enquire about T4

Match your installed parts

Send the nameplate and full plate code, photographs of both faces and the sealing groove, plus the required quantities. Material and configuration are reviewed for your service conditions.

Information needed for your T4 quotation

Equipment nameplate, complete model and plate marking, including pattern and variant.
Plate and gasket photographs, opening arrangement, sealing groove and attachment details.
Overall dimensions, port centre distances, port diameter, plate material and thickness.
Plate arrangement or GA drawing, available calculation sheet or data sheet.
Operating fluids, temperatures, pressures and cleaning conditions for material review.
Required quantities, delivery country and requested date.

Before ordering

Original equipment reference	SPX APV T4
Parts scope	Independent aftermarket replacement plates & gaskets
Configuration and material	To be confirmed against the existing component, drawings and service conditions
Quantity and delivery	Availability and lead time are reviewed for the requested quantity and destination

T4 replacement parts questions

Are these original SPX APV parts?

SHINEHEAT supplies independent aftermarket replacement parts. The brand and model identify the original equipment reference and do not imply OEM manufacture or affiliation.

Is the model code enough to confirm compatibility?

No. The full code, pattern, dimensions, opening arrangement, gasket profile and material must also be checked.

Can the display image be used for dimensional approval?

No. The image is a presentation reference. Use the existing part, measured dimensions and approved drawings for final matching.
