GXD100 Replacement Gaskets for Tranter

Item No.: GXD100

SHINEHEAT supplies aftermarket replacement gaskets for Tranter GXD100 plate heat exchangers. Send the full model code, existing part photographs and required quantity for configuration review.

INQUIRY PDF Format

Description

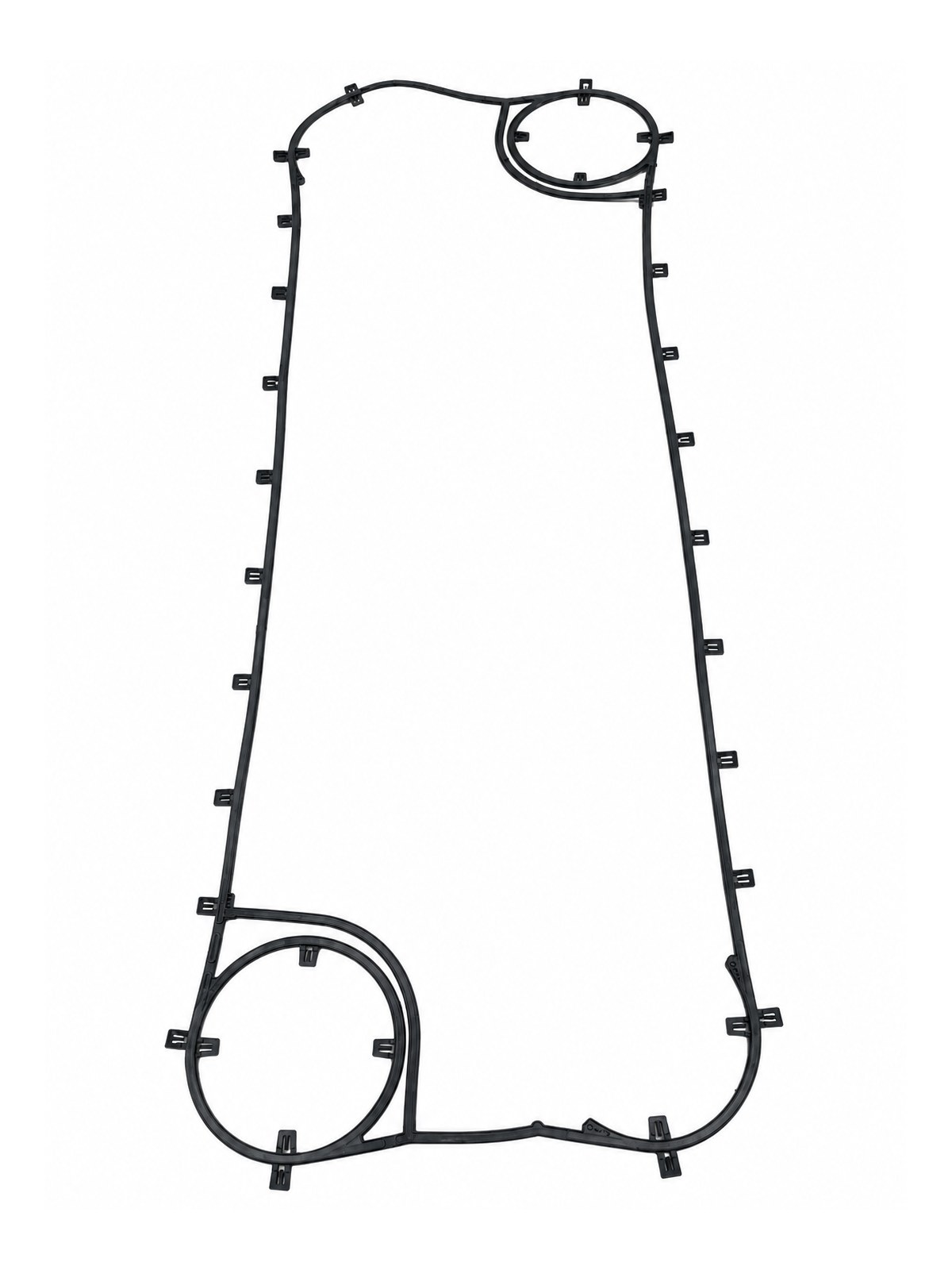

GXD100 Tranter replacement gasket display — GXD100 gasket presentation image enhanced from a supplied photograph. Confirm the final configuration from the existing part and approved drawing.

GXD100 replacement gaskets

SHINEHEAT supplies aftermarket replacement gaskets for Tranter GXD100 plate heat exchangers. Send the full model code, existing part photographs and required quantity for configuration review.

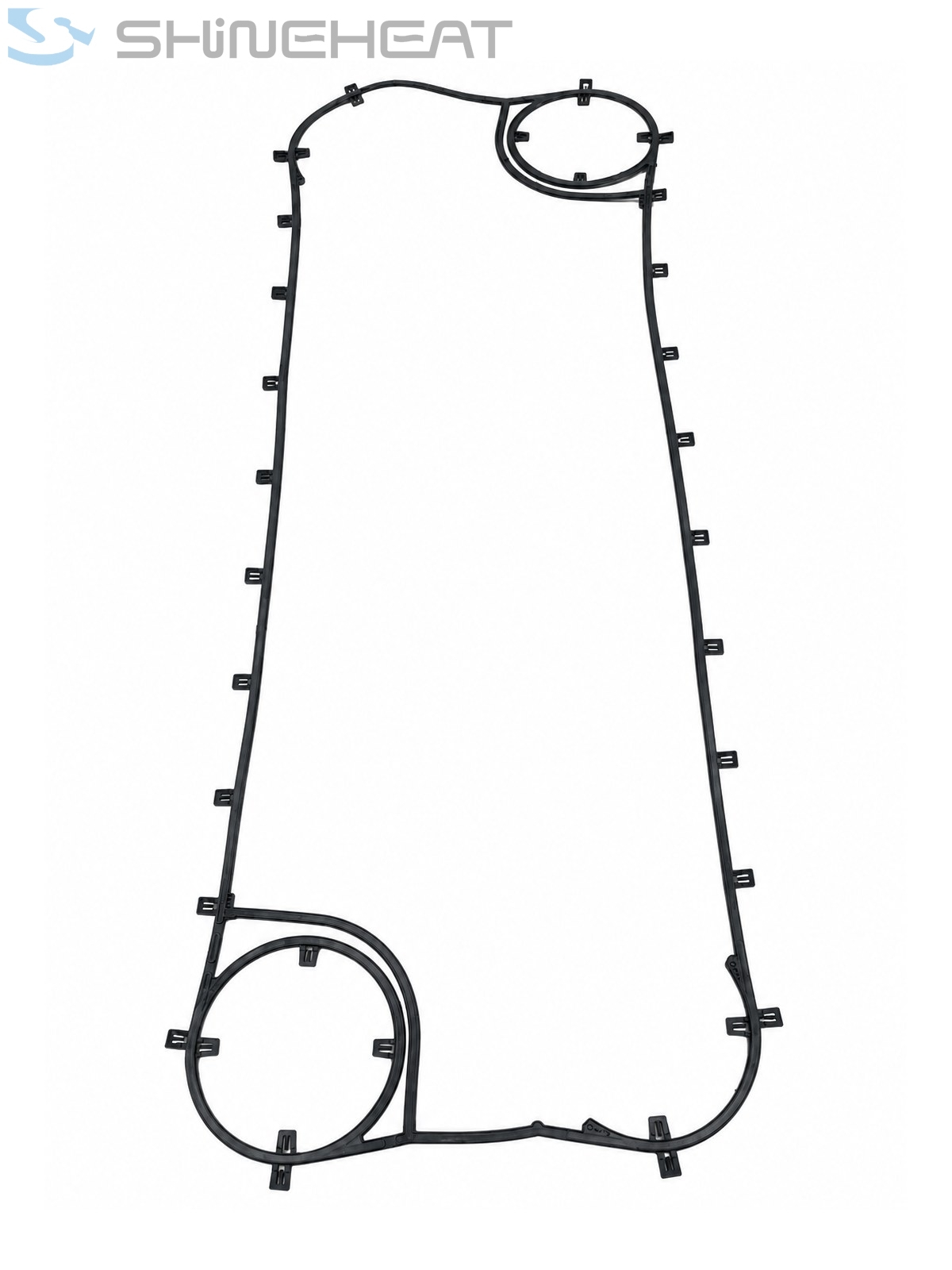

The GXD100 gasket reference shows diagonally opposed port rings and perimeter clips. Confirm the gasket layout, attachment points and sealing groove against the existing plate.

Enquire about GXD100

Match your installed parts

Send the nameplate and full plate code, photographs of both faces and the sealing groove, plus the required quantities. Material and configuration are reviewed for your service conditions.

Information needed for your GXD100 quotation

Equipment nameplate, complete model and plate marking, including pattern and variant.
Plate and gasket photographs, opening arrangement, sealing groove and attachment details.
Overall dimensions, port centre distances, port diameter, plate material and thickness.
Plate arrangement or GA drawing, available calculation sheet or data sheet.
Operating fluids, temperatures, pressures and cleaning conditions for material review.
Required quantities, delivery country and requested date.

Before ordering

Original equipment reference	Tranter GXD100
Parts scope	Independent aftermarket replacement gaskets
Configuration and material	To be confirmed against the existing component, drawings and service conditions
Quantity and delivery	Availability and lead time are reviewed for the requested quantity and destination

GXD100 replacement parts questions

Are these original Tranter parts?

SHINEHEAT supplies independent aftermarket replacement parts. The brand and model identify the original equipment reference and do not imply OEM manufacture or affiliation.

Is the model code enough to confirm compatibility?

No. The full code, pattern, dimensions, opening arrangement, gasket profile and material must also be checked.

Can the display image be used for dimensional approval?

No. The image is a presentation reference. Use the existing part, measured dimensions and approved drawings for final matching.
