Description

Spare Parts for Sondex Plate Heat Exchanger (No mini order quantity, begin with ONE piece order!)

Identical repalcement Sondex Plates and Gaskets are available for service and mantainance, Sondex 100% identical plate heat exchanger also could be customzied produced.

SONDEX PLATES SPECIFICATION
Brand	Model	Depth of Groove (mm)	Dia. of Plate Hole (mm)	Pitch of Plate Hole (mm)	Outline Dimension (mm)	Transfer Area （㎡）
Sondex	S4A	2.35	φ28	381*70	449*140	0.04
	S8A	2.35	φ28	656*70	724*140	0.08
	S7A	2.6	φ60	394*126	498*230	0.07
	S14A	2.6	φ60	694*126	798*230	0.14
	S20A	2.6	φ60	894*126	998*230	0.2
	S9A	2.3	φ66	381*192	496*306	0.09
	S19A	2.3	φ66	701*192	816*306	0.19
	S31A	2.3	φ66	1050*192	1166*306	0.31
	S17	3	φ69	800*150	927*274	0.17
	S21	2.6	φ100	719*225	871*380	0.21
	S21A	2.6	φ100	719*225	871*380	0.21
	S22	4	φ100	719*225	882*378	0.22
	S37	3.5	φ81	1071*238	1212*380	0.37
	S41	2.6	φ147	890*296	1100*497	0.41
	S41A	2.6	φ147	890*296	1100*497	0.41
	S42	3.8	φ147	890*296	1100*497	0.45
	S42A	3.8	φ147	890*296	1100*497	0.45
	S63	3.8	φ148	1292*296	1502*500	0.63
	S43A	2.6	φ202	791*395	1058*657	0.43
	S43	2.6	φ202	791*395	1062*659	0.43
	S65	2.6	φ202	1091*395	1362*659	0.65
	S100	2.6	φ202	1489*395	1760*659	1
	S47	2.6	φ100	1365*225	1518*380	0.47
	S64	2.6	φ100	1771*225	1924*380	0.64
	S62	2.6	φ147	1292*296	1502*500	0.62
	S110	2.6	φ147	2094*296	2304*500	1.1
	SF123	11.2	φ200	1842*350	2196*686	1.23
	S16B	2	φ60	640*140	752*252	0.14
	SFD22	3	φ160φ111φ38		952*320
	S130-Glue	2.6	φ213	1891*395	2153*657	1.3
	S100-Glue	2.6	φ213	1489*395	1751*657	1
	S65-Glue	2.6	φ213	1091*395	1353*657	0.65
	S43-Glue	2.6	φ213	791*395	1053*657	0.43

Applicable Material for Plates of Plate Heat Exchanger

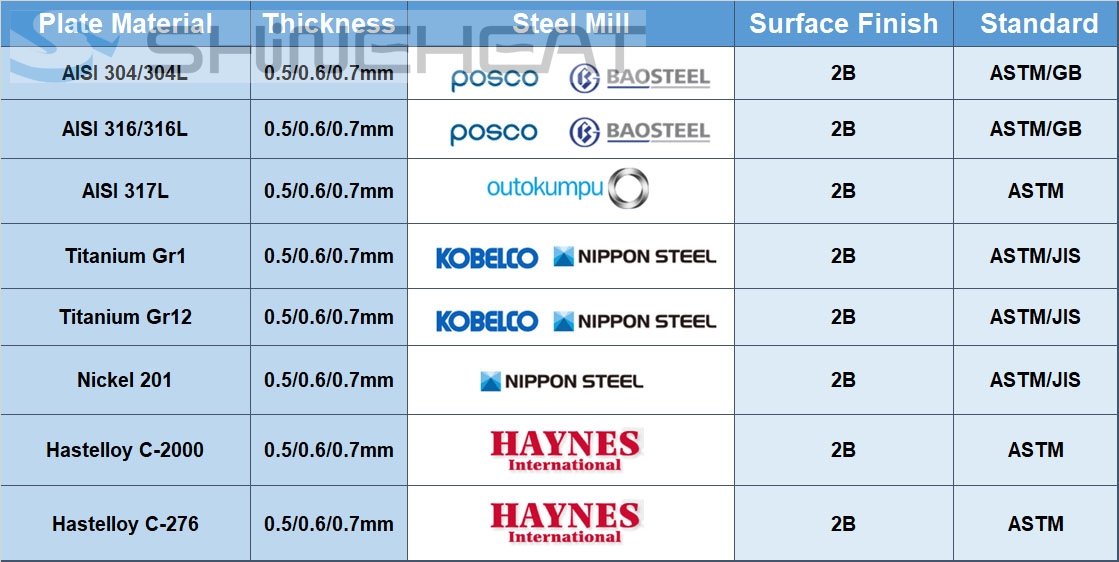

For raw material steel sheet, SHINEHEAT only select Qualified Steel Mill as specifed as following chart, not allow any low quality raw material in production.
For Specific Material Certificate, please contact with SHINEHEAT to obtain.

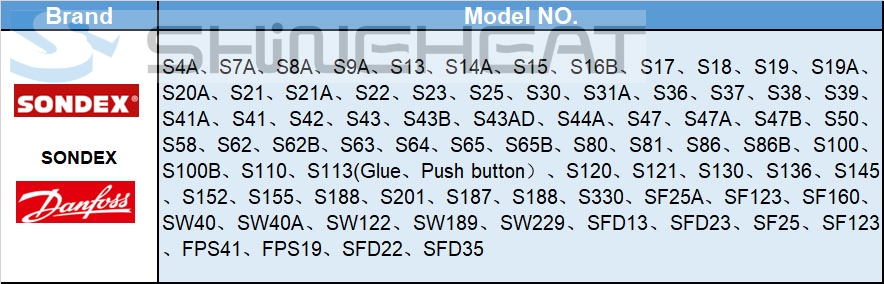

Supply List for Sondex Gaskets

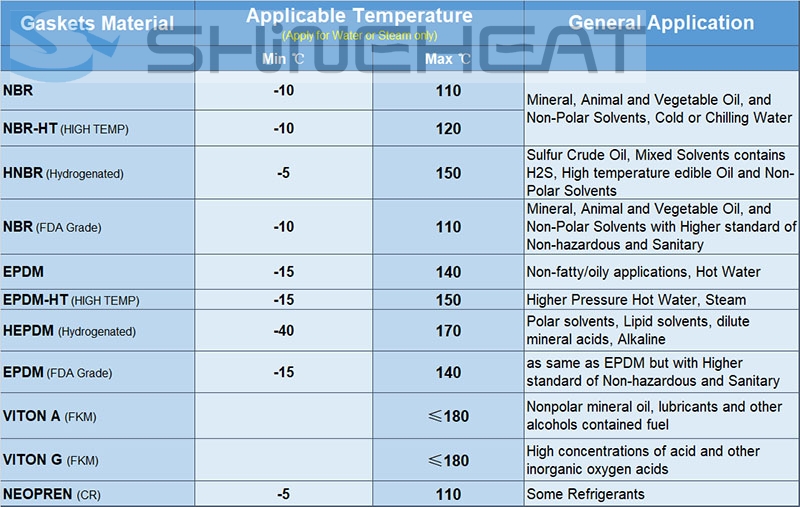

Applicable Material for Gaskets of Plate Heat Exchanger

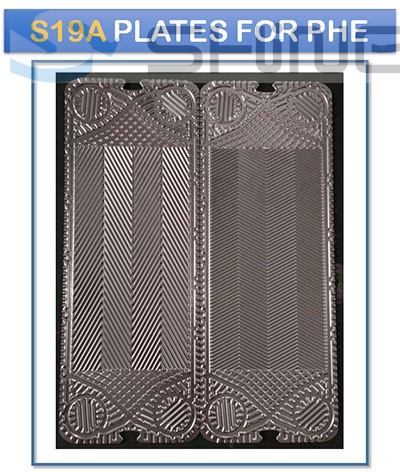

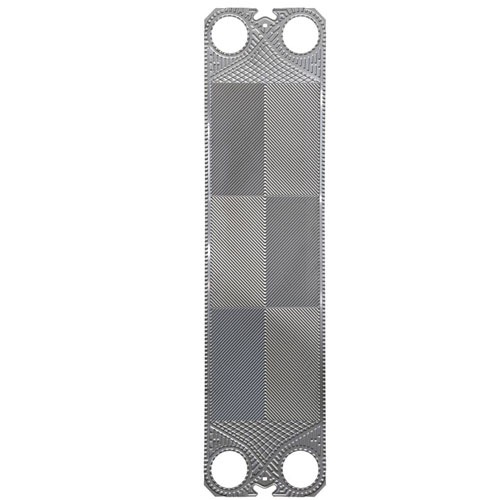

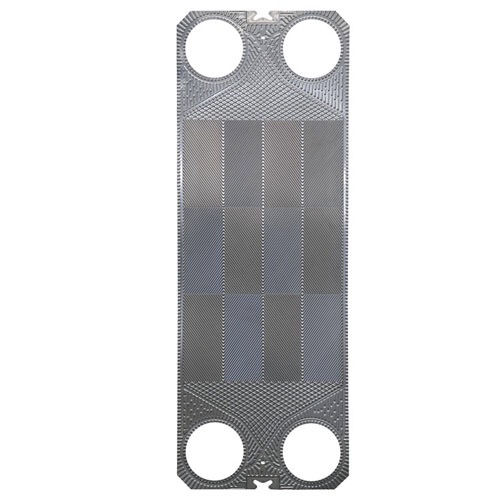

S19A PLATES FOR PLATE HEAT EXCHANGER

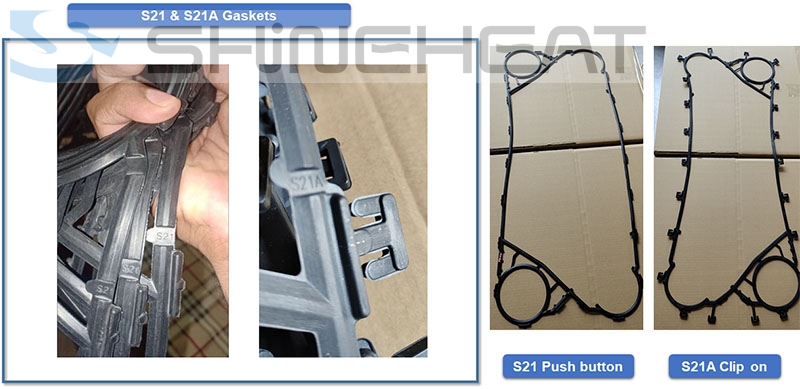

S21, S21A GASKETS FOR PLATE HEAT EXCHANGER
S21 Gaskets are Push Button Type which matching for S21 Plates;
S21A Gaslets are Clip on Type which matching for S21A Plates, so please do pay attention to their difference when choice spare parts.

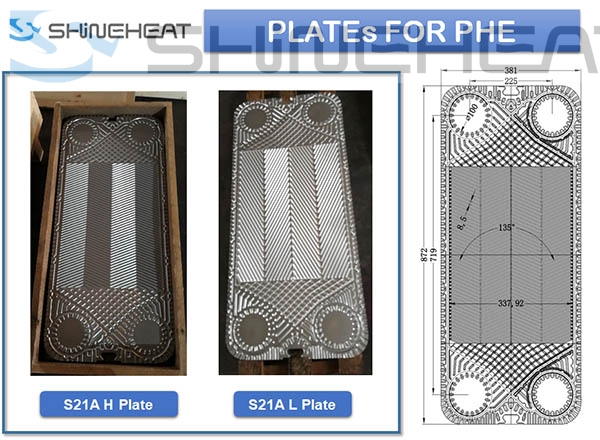

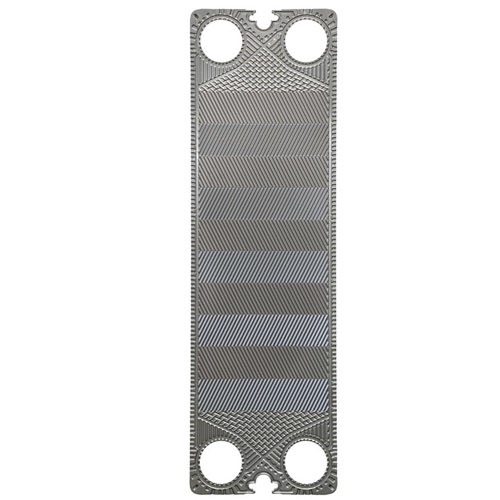

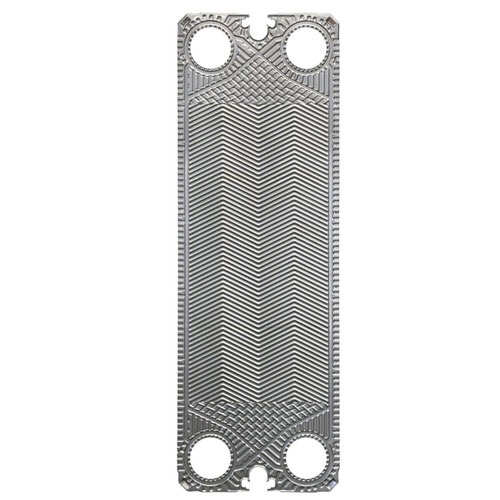

S21A PLATES FOR PLATE HEAT EXCHANGER,

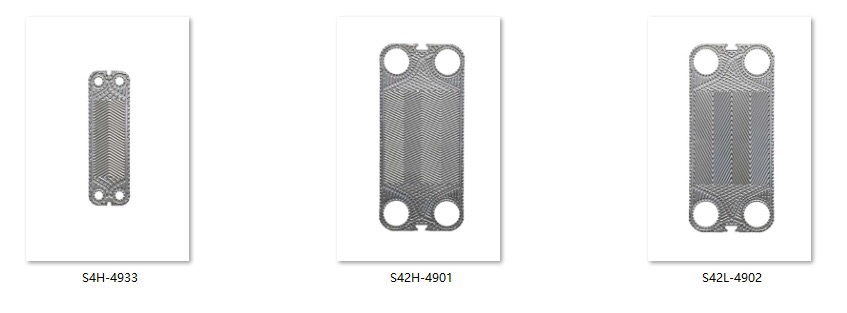

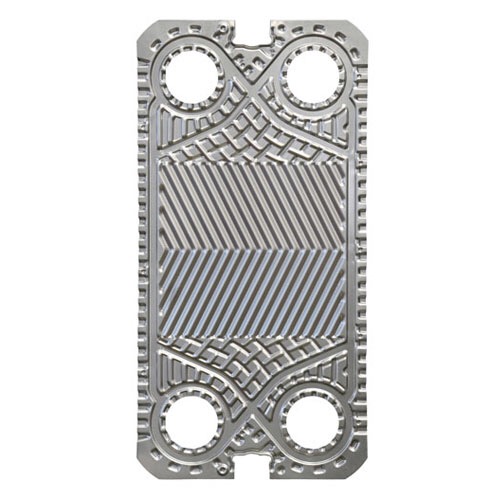

H and L Plates are all available

SF Series is Free Flow Plate Heat Exchanger of SONDEX
Free Flow Plate Heat Exchanger is typically recommended for application of Particle-rich, fouling tendency or high viscosity fluids. The contact-free plate pass make sure longer working time before cleaning. However, Shineheat "SH-WAVE" Wide Gap is also an option for Gaskets-Free Solution.
For Free Flow Plate, the thickness is 0.8 or 0.9mm,
For Gaskets of Free Flow Plate, Gaskets attachment type is "Hang-on" or "Sonder Lock"

Equivalent Gaskets for SONDEX SF229 Free Flow Model are provided by Shineheat in bulk quantity.

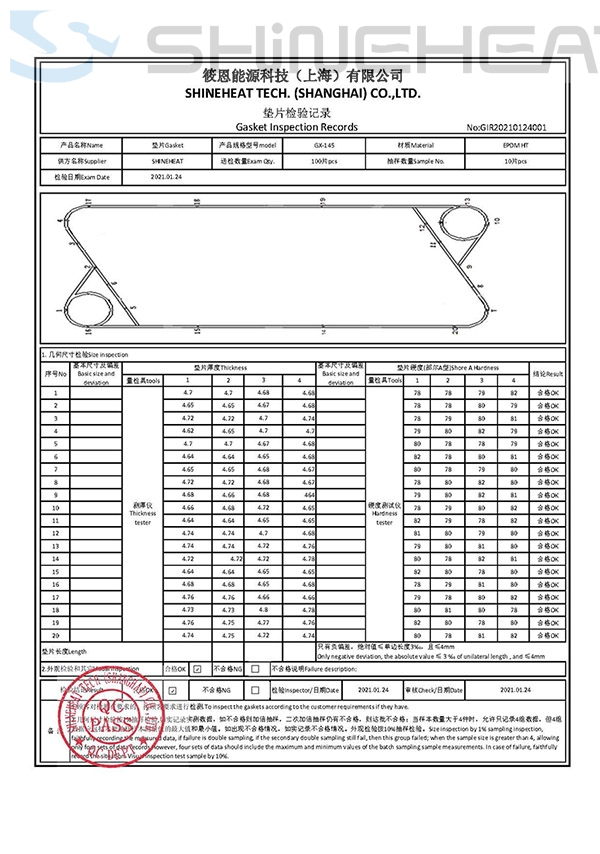

SHINEHEAT Gaskets Inspection Records

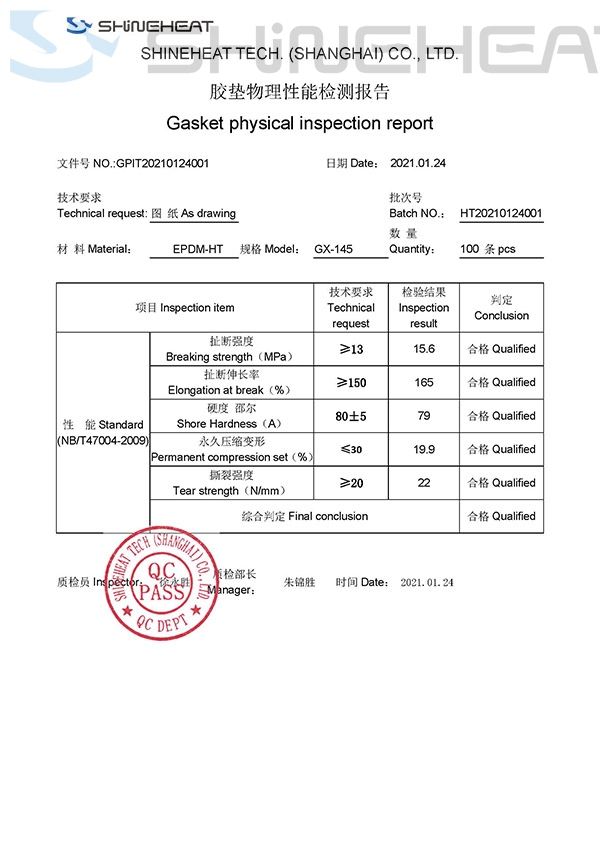

SHINEHEAT Gaskets Physical Inspection Records
