Information needed for your SIGMA M9 quotation

• Equipment nameplate, complete model and plate marking, including pattern and variant.
• Plate and gasket photographs, opening arrangement, sealing groove and attachment details.
• Overall dimensions, port centre distances, port diameter, plate material and thickness.
• Plate arrangement or GA drawing, available calculation sheet or data sheet.
• Operating fluids, temperatures, pressures and cleaning conditions for material review.
• Required quantities, delivery country and requested date.

Before ordering

SIGMA M9 replacement parts questions

Are these original API Schmidt parts?

SHINEHEAT supplies independent aftermarket replacement parts. The brand and model identify the original equipment reference and do not imply OEM manufacture or affiliation.

Is the model code enough to confirm compatibility?

No. The full code, pattern, dimensions, opening arrangement, gasket profile and material must also be checked.

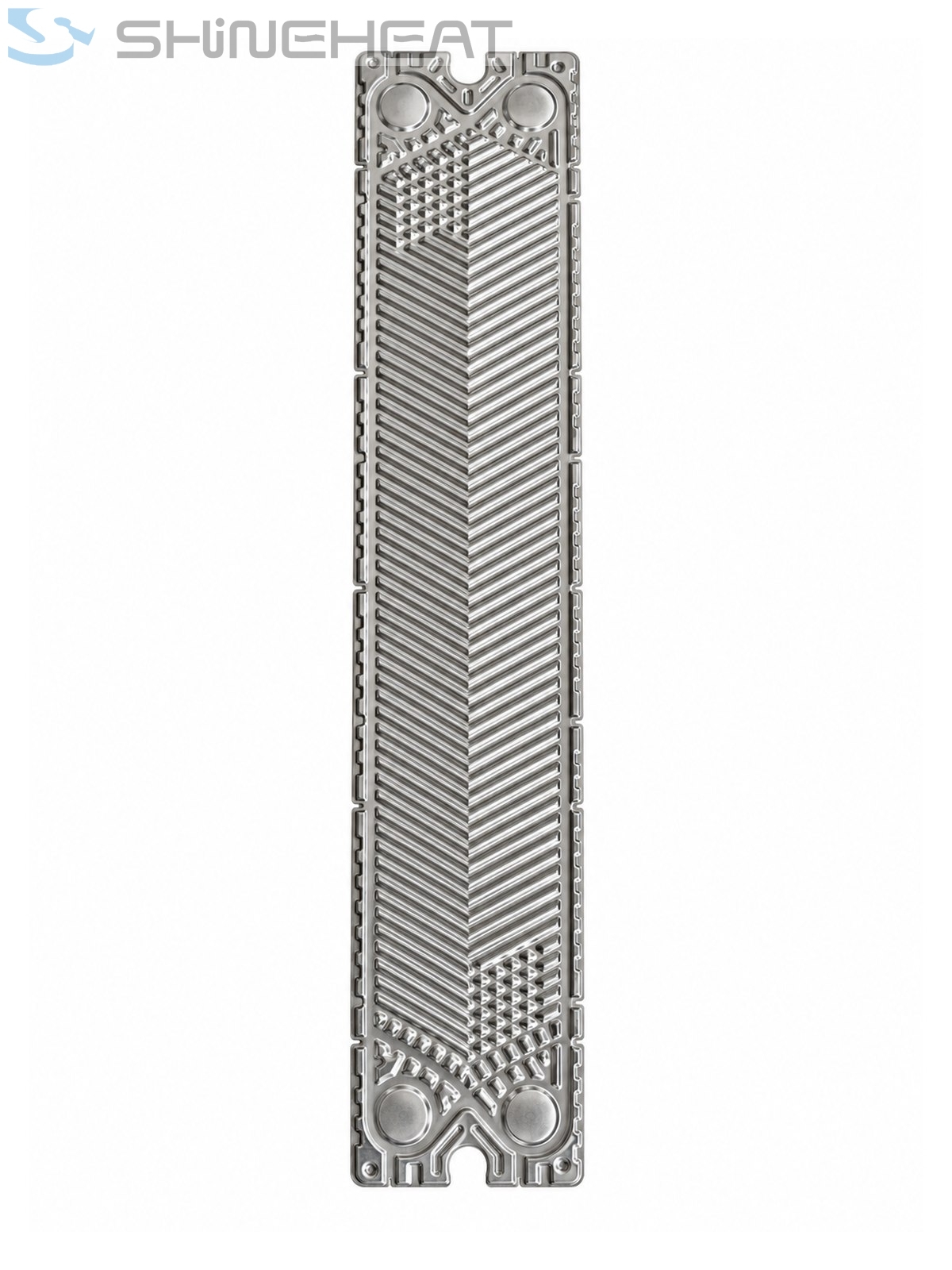

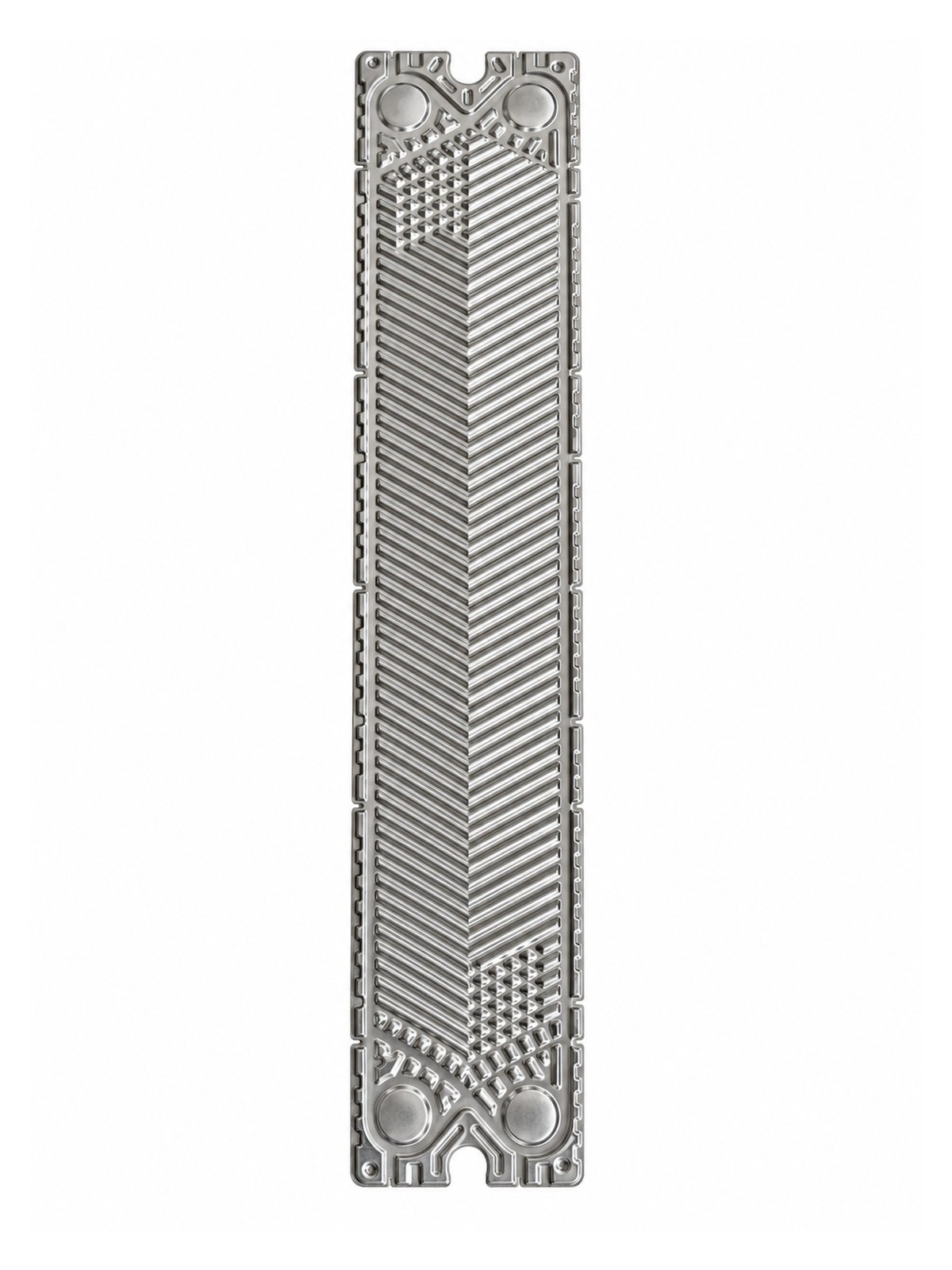

Can the display image be used for dimensional approval?

No. The image is a presentation reference. Use the existing part, measured dimensions and approved drawings for final matching.
