| THERMO WAVE PLATE SPECIFICATION | ||||||
| Brand | Model | Depth of Groove (mm) | Dia. of Plate Hole (mm) | Pitch of Plate Hole (mm) |
Outline Dimension (mm) |
Transfer Area （㎡） |
| Thermo Wave | TL250A | 3.8 | φ107 | 774*256 | 1014*438 | 0.28 |
| TL500A | 3.8 | φ107 | 1256*256 | 1496*438 | 0.5 | |
| TL250B | 2.4 | φ107 | 774*256 | 1014*438 | 0.28 | |
| TL500B | 2.4 | φ107 | 1256*256 | 1496*438 | 0.5 | |
| TL400A | 3.8 | φ85 | 1208*212 | 1384*369 | 0.39 | |
| TL200A | 3.8 | φ85 | 620*212 | 796*369 | 0.18 | |
| TL90B | 2 | φ43 | 565*125 | 721*244 | 0.1 | |
| TL150B | 2 | φ43 | 825*125 | 981*244 | 0.16 | |
| TL650A | 4 | φ206 | 1153*305 | 1496*586 | 0.57 | |

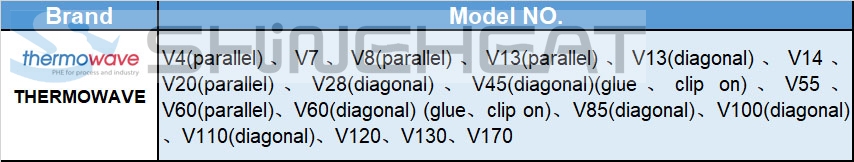

| SUPPLY LIST FOR THERMO WAVE GASKETS |
