GC016 Replacement Plates & Gaskets for Tranter

Item No.: GC016

SHINEHEAT supplies aftermarket replacement plates & gaskets for Tranter GC016 plate heat exchangers. Send the full model code, existing part photographs and required quantity for configuration review.

INQUIRY PDF Format

Description

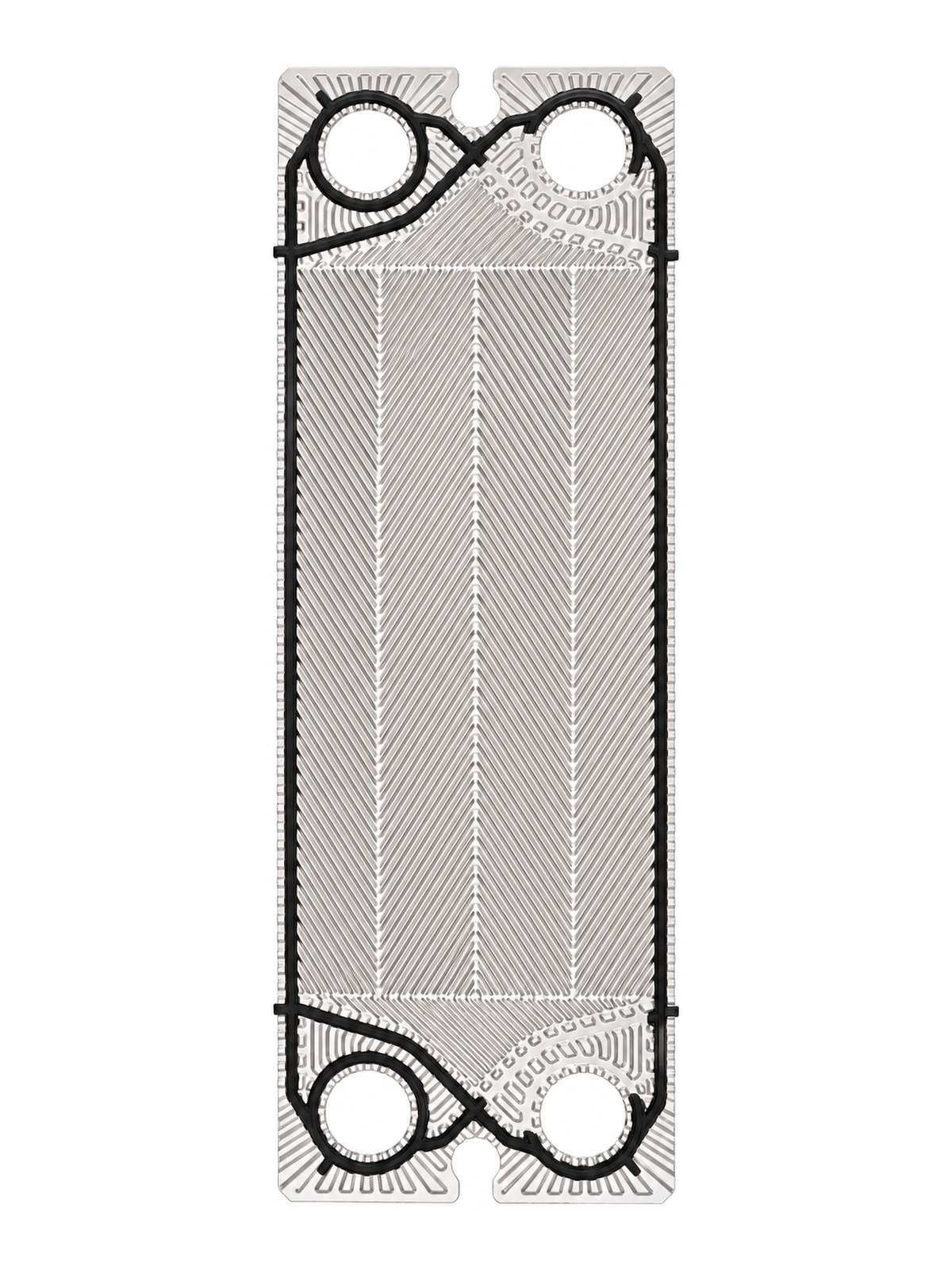

Tranter GC016 replacement plate and gasket display — GC016 plate presentation image enhanced from a supplied photograph. Confirm the final configuration from the existing part and approved drawing.

GC016 replacement plates & gaskets

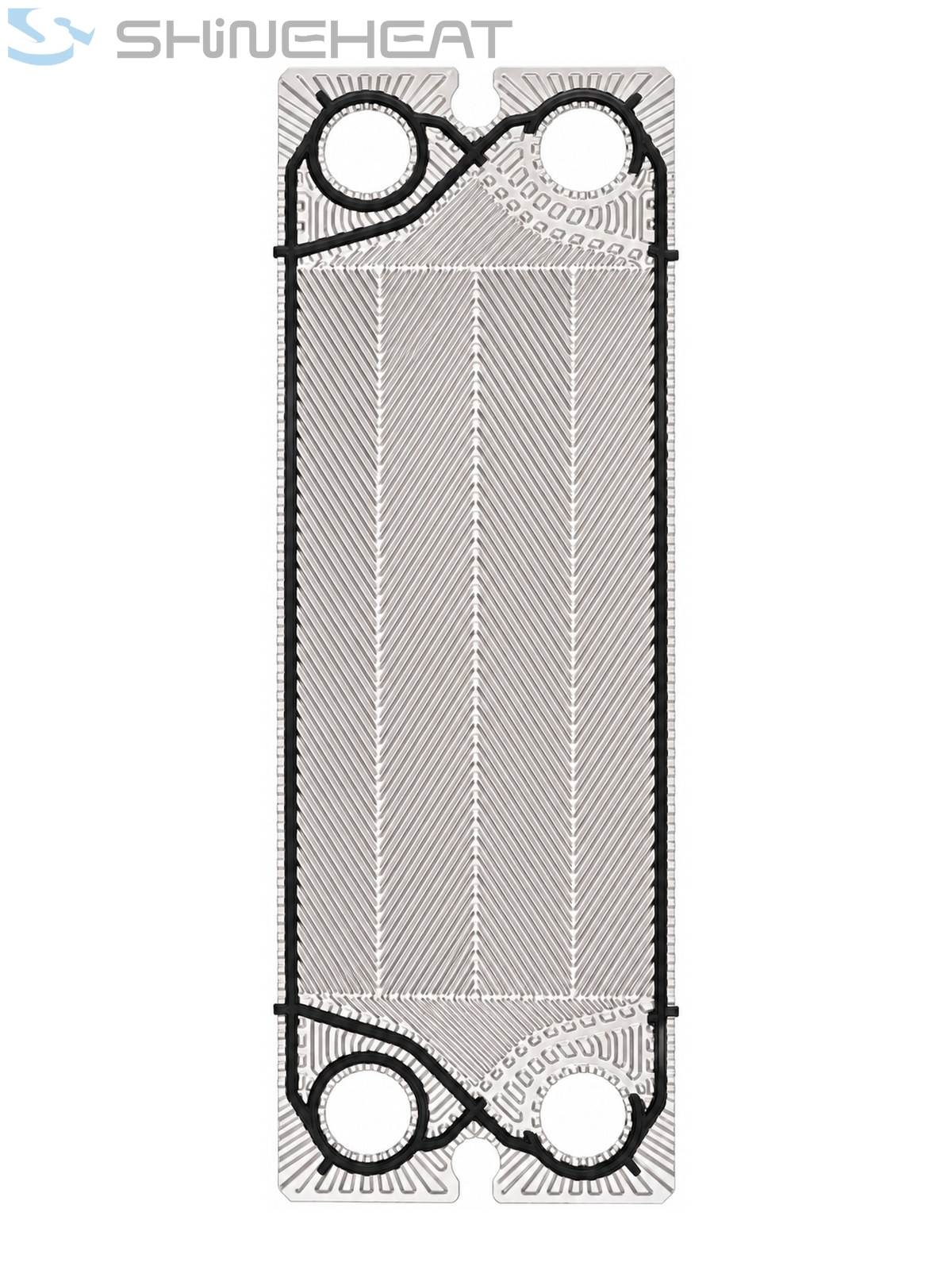

The GC016 reference shows a narrow L-pattern plate with a fitted gasket and four open ports. Confirm the corrugation pattern, sealing route and full model marking.

Model naming: GC016 and GC16 are alternative spellings covered on this page. Include any pattern or configuration suffix shown on your existing part.

Enquire about GC016

Match your installed parts

Send the nameplate and full plate code, photographs of both faces and the sealing groove, plus the required quantities. Material and configuration are reviewed for your service conditions.

Information needed for your GC016 quotation

Equipment nameplate, complete model and plate marking, including pattern and variant.
Plate and gasket photographs, opening arrangement, sealing groove and attachment details.
Overall dimensions, port centre distances, port diameter, plate material and thickness.
Plate arrangement or GA drawing, available calculation sheet or data sheet.
Operating fluids, temperatures, pressures and cleaning conditions for material review.
Required quantities, delivery country and requested date.

Before ordering

Original equipment reference	Tranter GC016
Parts scope	Independent aftermarket replacement plates & gaskets
Configuration and material	To be confirmed against the existing component, drawings and service conditions
Quantity and delivery	Availability and lead time are reviewed for the requested quantity and destination

GC016 replacement parts questions

Are these original Tranter parts?

SHINEHEAT supplies independent aftermarket replacement parts. The brand and model identify the original equipment reference and do not imply OEM manufacture or affiliation.

Is the model code enough to confirm compatibility?

No. The full code, pattern, dimensions, opening arrangement, gasket profile and material must also be checked.

Can the display image be used for dimensional approval?

No. The image is a presentation reference. Use the existing part, measured dimensions and approved drawings for final matching.
