Description
Spare parts for Plate Heat Exchanger

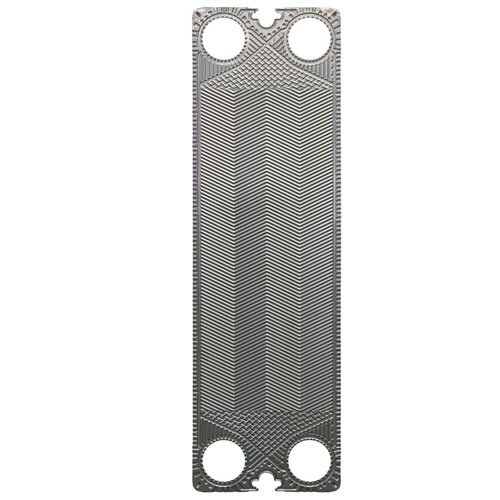

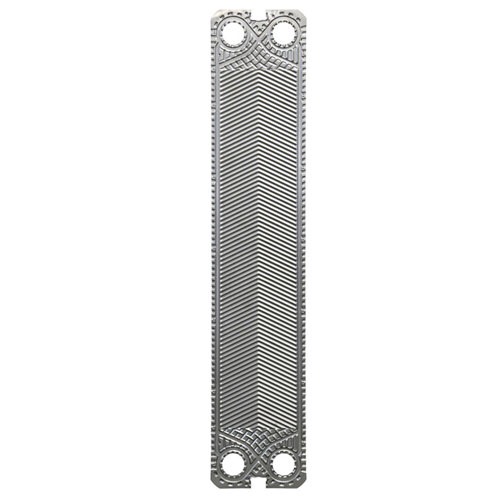

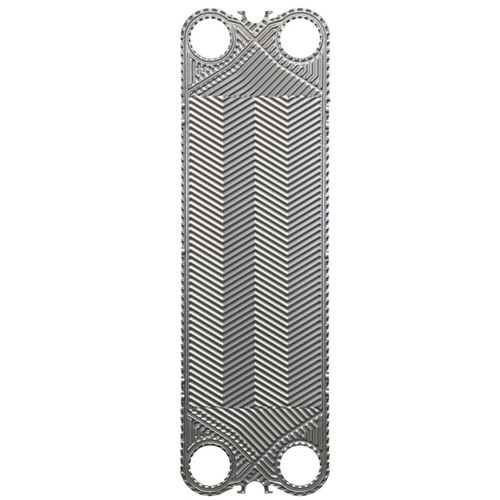

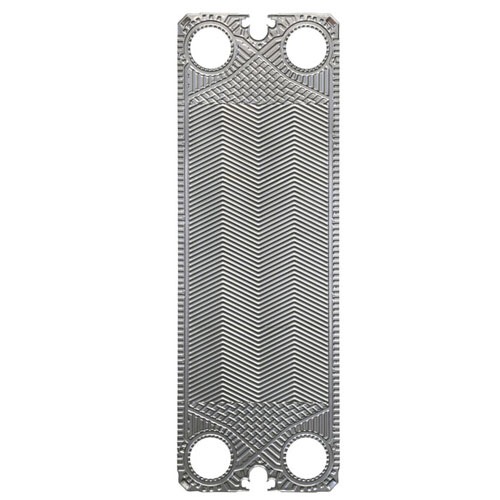

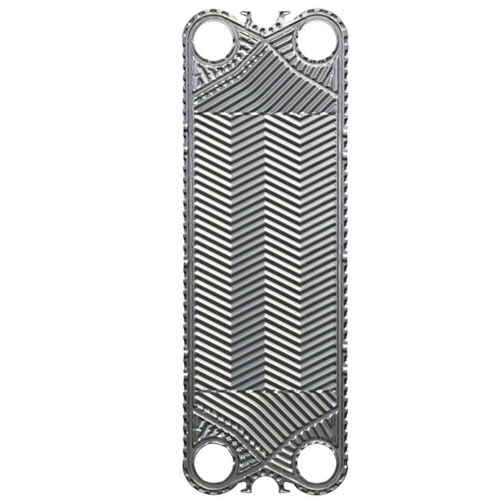

Identical repalcement Funke Plates and Gaskets are available for service and mantainance, Funke 100% identical plate heat exchanger also could be customzied produced.

FUNKE PLATE SPECIFICATION
Brand Model  Depth of Groove (mm) Dia. of Plate Hole         (mm) Pitch of Plate Hole
(mm)
Outline Dimension
(mm)
Transfer Area       (㎡)
Funke FP04 2.1 φ30 336*65 393*122 0.04
FP08 2.1 φ30 336*65 733*122 0.08
FP05 2.2 φ29 381*70 449*140 0.04
FP09 2.2 φ29 676*70 744*140 0.08
FP10 2.34 φ57 494*126 598*230 0.1
FP16 2.34 φ57 694*126 798*230 0.16
FP22 2.34 φ57 894*126 998*230 0.22
FP14 2 φ75 590*135 700*248 0.14
FP20 2 φ75 819*135 929*248 0.2
FP205 2.6 φ100 719*225 880*381 0.205
FP31 2.6 φ100 894*225 1055*381 0.31
FP40 2.6 φ100 1141*225 1302*381 0.4
FP50 2.6 φ100 1388*225 1549*381 0.5
FP71 2.6 φ100 1882*225 2042*381 0.72
FP41 3 φ150 941.5*290 1156*505 0.41
FP60 3 φ150 1306*290 1521*505 0.6
FP80 3 φ150 1671*290 1886*505 0.8
FP42 2.6 φ148 941.8*290 1156*506 0.41
FP62 2.6 φ148 2306.9*290 1521.1*506 0.62
FP82 2.6 φ148 1672*290 1886.2*506 0.82
FP112 2.6 φ148 2158.8*290 2373*506 1.1
FP130 2.6 φ200 1851*395 2120*660 1.2
FP100 2.6 φ200 1491*395 1760*660 1
FP70 2.6 φ200 1131*395 1400*660 0.7
FP405 2.6 φ200 771*395 1040*660 0.4

Applicable Material for Plates of Plate Heat Exchanger
For raw material steel sheet, SHINHEAT only select Qualified Steel Mill as specifed as following chart, not allow any low quality raw material in production.
For Specific Material Certificate, please contact with SHINEHEAT to obtain.

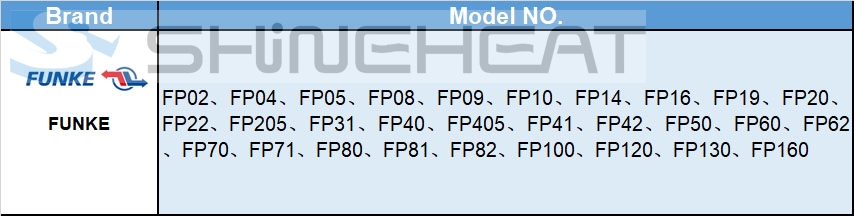

SUPPLY LIST FOR FUNKE GASKETS




Applicable Material for Gaskets of Plate Heat Exchanger
