GXD051 Replacement Gaskets for Tranter

Item No.: GXD051

SHINEHEAT supplies aftermarket replacement gaskets for Tranter GXD051 plate heat exchangers. Send the full model code, existing part photographs and required quantity for configuration review.

INQUIRY PDF Format

Description

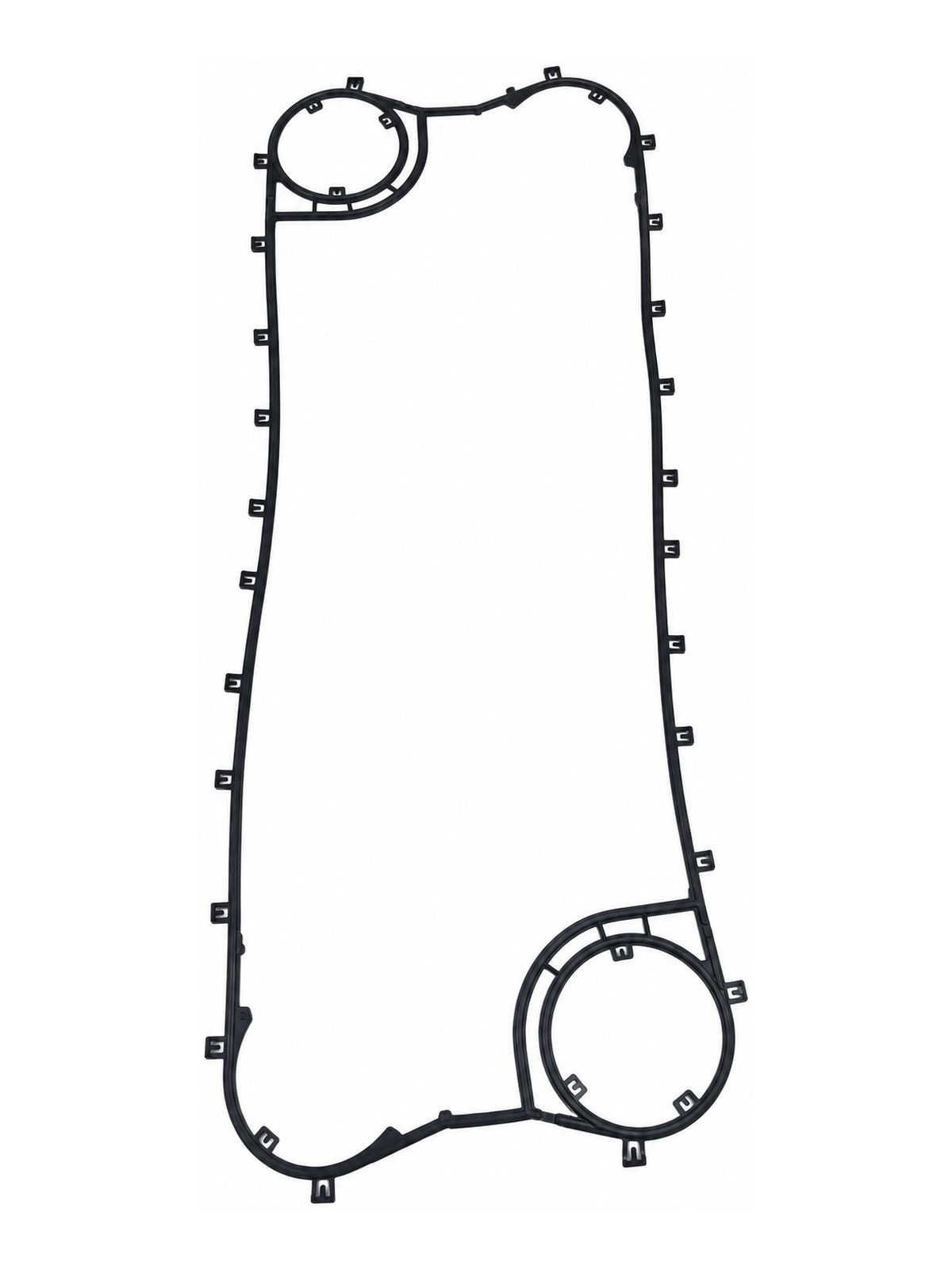

Tranter GXD051 replacement gasket display — GXD051 gasket presentation image enhanced from a supplied photograph. Confirm the final configuration from the existing part and approved drawing.

GXD051 replacement gaskets

SHINEHEAT supplies aftermarket replacement gaskets for Tranter GXD051 plate heat exchangers. Send the full model code, existing part photographs and required quantity for configuration review.

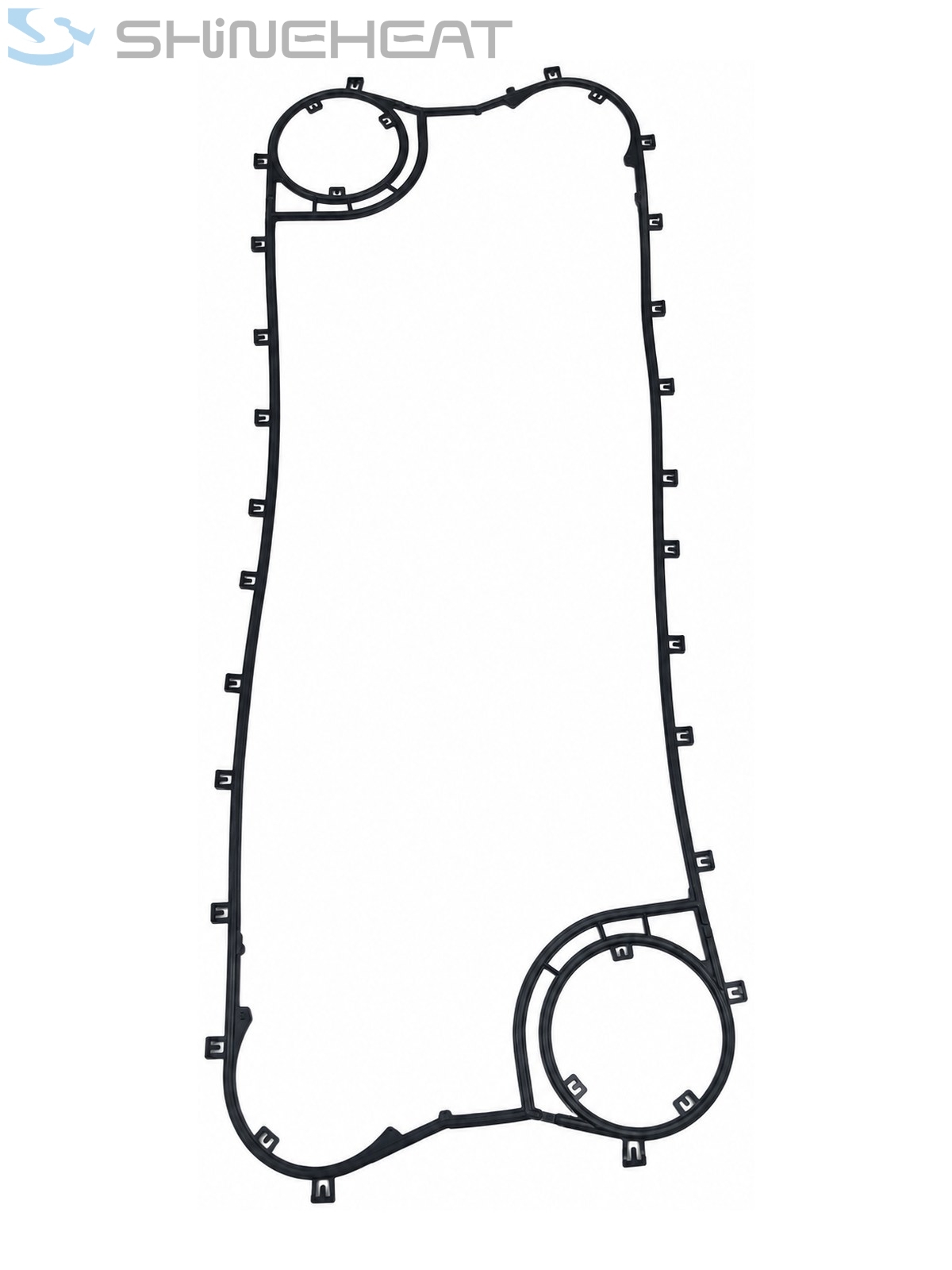

The GXD051 reference shows a clip-on gasket with perimeter tabs and diagonally opposite sealing rings. Compare the complete gasket outline, clip details and plate groove before ordering.

Model naming: GXD051 and GXD51 are alternative spellings covered on this page. Include any pattern or configuration suffix shown on your existing part.

Enquire about GXD051

Match your installed parts

Send the nameplate and full plate code, photographs of both faces and the sealing groove, plus the required quantities. Material and configuration are reviewed for your service conditions.

Information needed for your GXD051 quotation

Equipment nameplate, complete model and plate marking, including pattern and variant.
Plate and gasket photographs, opening arrangement, sealing groove and attachment details.
Overall dimensions, port centre distances, port diameter, plate material and thickness.
Plate arrangement or GA drawing, available calculation sheet or data sheet.
Operating fluids, temperatures, pressures and cleaning conditions for material review.
Required quantities, delivery country and requested date.

Before ordering

Original equipment reference	Tranter GXD051
Parts scope	Independent aftermarket replacement gaskets
Configuration and material	To be confirmed against the existing component, drawings and service conditions
Quantity and delivery	Availability and lead time are reviewed for the requested quantity and destination

GXD051 replacement parts questions

Are these original Tranter parts?

SHINEHEAT supplies independent aftermarket replacement parts. The brand and model identify the original equipment reference and do not imply OEM manufacture or affiliation.

Is the model code enough to confirm compatibility?

No. The full code, pattern, dimensions, opening arrangement, gasket profile and material must also be checked.

Can the display image be used for dimensional approval?

No. The image is a presentation reference. Use the existing part, measured dimensions and approved drawings for final matching.
