Description

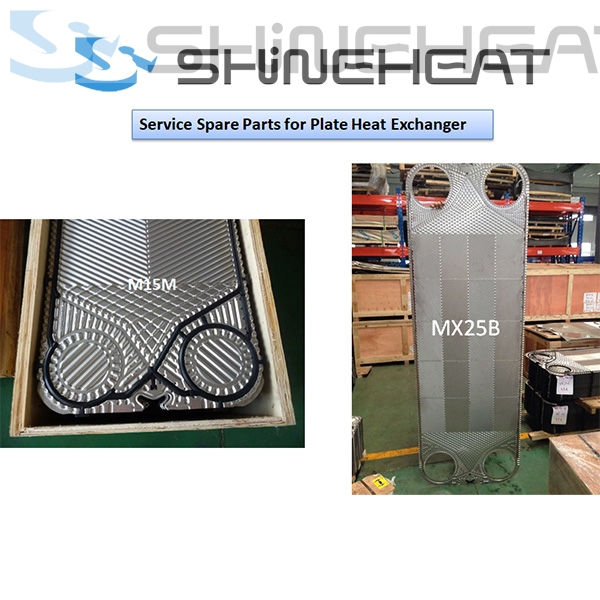

Spare Parts for ALaval Plate Heat Exchanger (No mini order quantity, begin with ONE piece order!)

Identical repalcement ALaval Plates and Gaskets are available for service and mantainance, ALaval 100% identical plate heat exchanger also could be customzied produced.

PLATE SPECIFICATION
Brand	Model	Depth of Groove (mm)	Dia. of Plate Hole (mm)	Pitch of Plate Hole (mm)	Outline Dimension (mm)	Transfer Area （㎡）
ALaval	M3	2.5	φ29	357*60	429*125va	0.032
	M6M	3	φ58	640*140	747*247	0.15
	M6B	2	φ59	640*140	747*247	0.15
	TS6	4	φ68	380*203	506*328	0.0856
	TL6B	2	φ58	1036*140	1148*248	0.25
	M10M	4	φ98	719*223	870*370	0.25
	M10B	2.6	φ97	719*223	870*370	0.25
	TL10B	2	φ109.5	1338*218	1500*373	0.5
	TL10P	3	φ105	1338*218	1500*373	0.5
	M15M	4	φ140	1294*298	1497*496	0.65
	M15B	2.6	φ140	1294*298	1498*496	0.65
	TL15B	2	φ155	2035*228	498*2250	1
	M20M	4	φ205	1479*353	1745*620	0.85
	T20B	2	φ209	1479*353	1749*621	0.9
	T20P	3	φ210	1479*353	1749*621	0.89
	TS20	4	φ195	698.5*363	960*621	0.5
	AK20	4	φ200	931.5*365	1215*664	0.5
	P16	2.5	φ29	357*60	427*123	0.03
	P26	3	φ70	592*135	709*248	0.13
	P36	4.55	φ120	946*226	1124*400	0.32
	Clip6	4	φ51	859*130	998*244	0.18
	Clip8	4	φ78	1095*220	1245*370	0.37
	Clip10	4	φ104	1324*324	1496*494	0.63
	Clip15	4.1	φ150	1524*400	1747*620	0.91
	T2B	2.6	φ21	298*50	351*102	0.02
	T5B	1.9	φ55	546*101	643*193	0.05
	T5M	3.1	φ48	553*100	642*192	0.05
	T20S	7.5	φ170	1478*353	1740*616	0.8
	A15B/AM15B	2.5	φ160	1315*350	1552*587	0.71
	AM20B	4	φ210	1450*365	1750*669	0.86
	T8M	4	φ50	193*608	331*749

Applicable Material for Plates of Plate Heat Exchanger
For material sheet, SHINHEAT only select Qualified Steel Mill as specifed as following chart, not allow any low quality raw material in production.
For Specific Material Certificate, please contact with SHINEHEAT to obtain.

Replaced Plates are under delivery

Gaskets Models Number

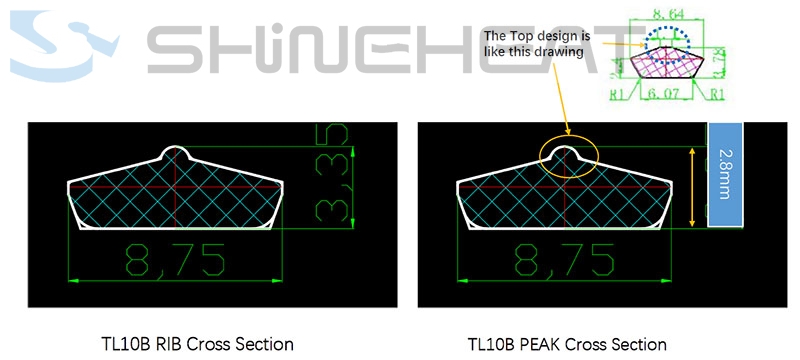

Tips! For Alfa Laval Gasket Number, like EPDMC, EPDMCT, EPDMAL , it means different types Gaskets in Physically features, possible the gaskets Hardness and Thickness are different.
EPDMC For Industrial Applications, Generally Gasket Cross Section is 3.35 mm
EPDMCT For Less pressure Applications, Generally Gasket Cross Section is 2.8 mm
EPDMAL For Special EPDM Gasket avoid Swelling during operation
