GF097 Replacement Plates for Tranter

Item No.: GF097

SHINEHEAT supplies aftermarket replacement plates for Tranter GF097 plate heat exchangers. Send the full model code, existing part photographs and required quantity for configuration review.

INQUIRY PDF Format

Description

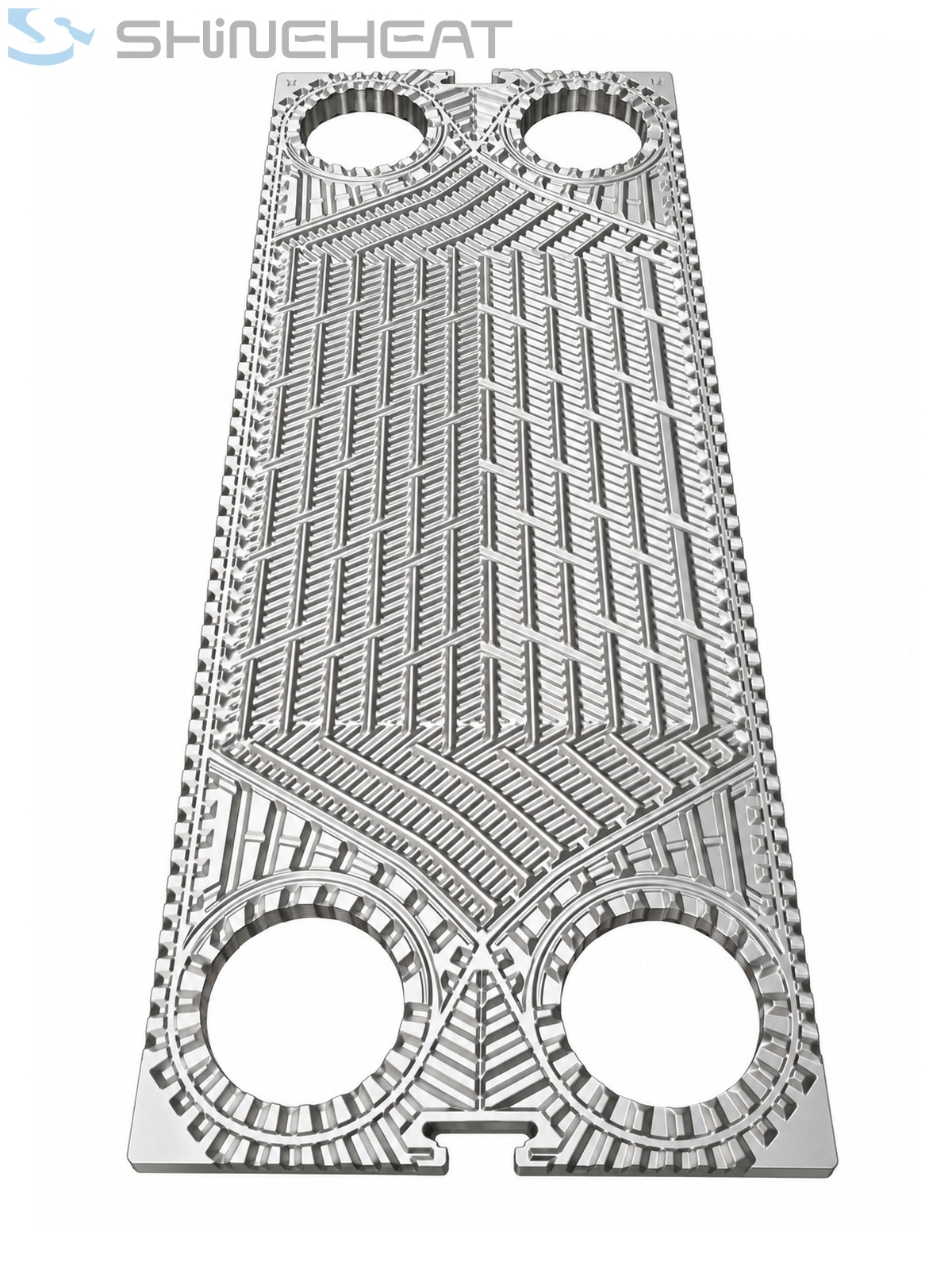

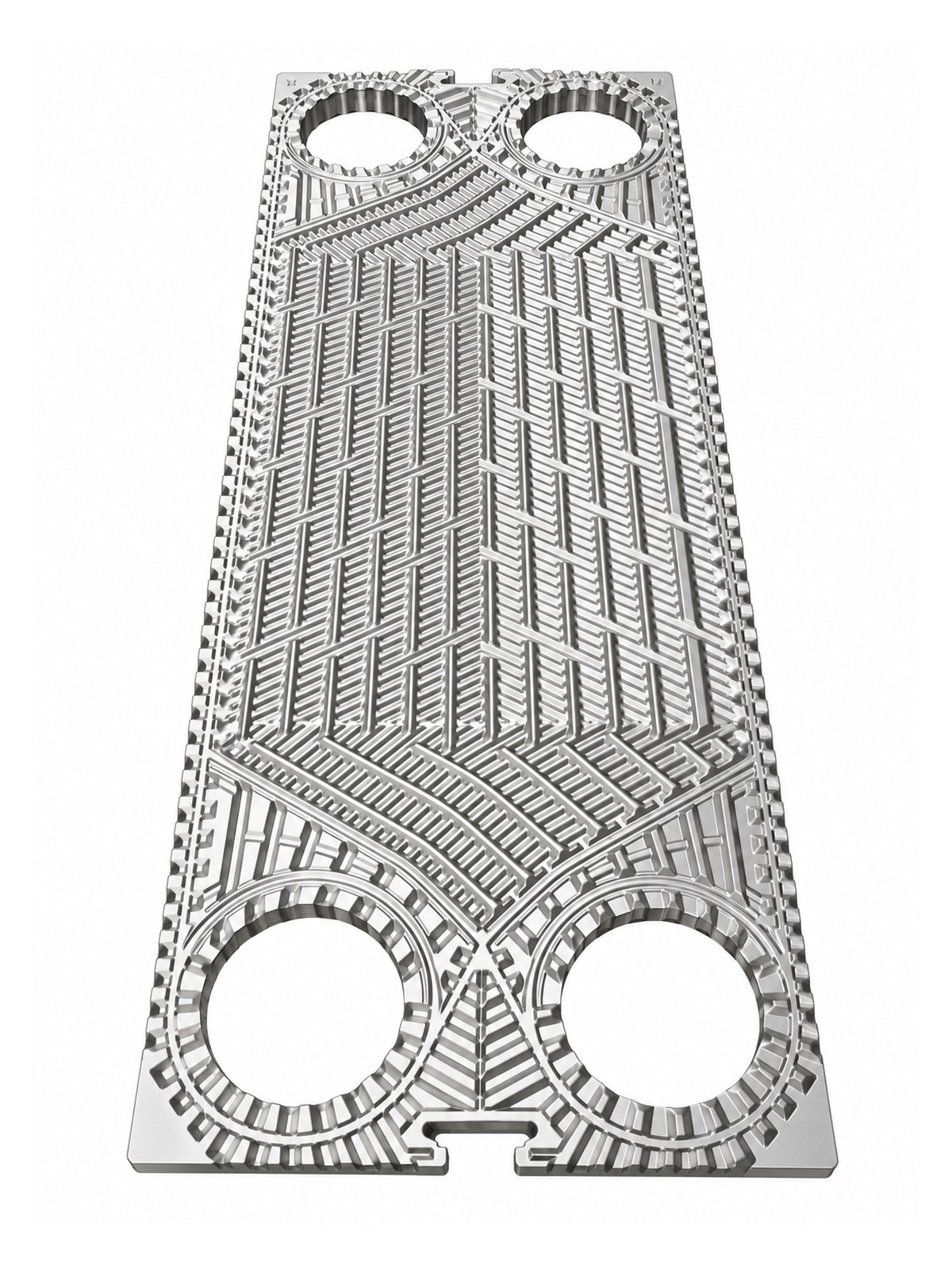

GF097 Tranter replacement plate display — GF097 plate presentation image enhanced from a supplied photograph. Confirm the final configuration from the existing part and approved drawing.

GF097 replacement plates

SHINEHEAT supplies aftermarket replacement plates for Tranter GF097 plate heat exchangers. Send the full model code, existing part photographs and required quantity for configuration review.

The GF097 reference shows four open ports and a segmented corrugation pattern. Match the full plate code, port arrangement and plate thickness to the installed heat exchanger before ordering.

Enquire about GF097

Match your installed parts

Send the nameplate and full plate code, photographs of both faces and the sealing groove, plus the required quantities. Material and configuration are reviewed for your service conditions.

Information needed for your GF097 quotation

Equipment nameplate, complete model and plate marking, including pattern and variant.
Plate and gasket photographs, opening arrangement, sealing groove and attachment details.
Overall dimensions, port centre distances, port diameter, plate material and thickness.
Plate arrangement or GA drawing, available calculation sheet or data sheet.
Operating fluids, temperatures, pressures and cleaning conditions for material review.
Required quantities, delivery country and requested date.

Before ordering

Original equipment reference	Tranter GF097
Parts scope	Independent aftermarket replacement plates
Configuration and material	To be confirmed against the existing component, drawings and service conditions
Quantity and delivery	Availability and lead time are reviewed for the requested quantity and destination

GF097 replacement parts questions

Are these original Tranter parts?

SHINEHEAT supplies independent aftermarket replacement parts. The brand and model identify the original equipment reference and do not imply OEM manufacture or affiliation.

Is the model code enough to confirm compatibility?

No. The full code, pattern, dimensions, opening arrangement, gasket profile and material must also be checked.

Can the display image be used for dimensional approval?

No. The image is a presentation reference. Use the existing part, measured dimensions and approved drawings for final matching.
