Spare Parts -Tranter

Description
Spare Parts for Tranter Plate Heat Exchanger (No mini order quantity, begin with ONE piece order!)





Identical repalcement Tranter Plates and Gaskets are available for service and mantainance, Tranter 100% identical plate heat exchanger also could be customzied produced.

TRANTER PLATE SPECIFICATION
Brand Model  Depth of Groove (mm) Dia. of Plate Hole         (mm) Pitch of Plate Hole
(mm)
Outline Dimension
(mm)
Transfer Area       (㎡)
TRANTER GL13 3 φ67 592*135 714*248 0.13
GX12 3 φ67 592*135 714*250 0.13
GX18 3 φ67 822*135 941*248 0.18
GC16 1.9 φ55 592*135 700*250 0.16
GC26 4 φ105 779*226.5 941*384 0.26
GX26 3.3 φ105 779*226.5 941*384 0.26
GX42 3.3 φ105 1189*226 1352*385 0.42
GX51 3.25 φ145 1143*300 1354*507 0.51
GC51 4 φ145 1143*300 1352*505 0.51
GC60 4.4 φ216 910*420 1196*700 0.6
GX60 3.5 φ194 910*420 1196*704 0.6
GX100 3.5 φ194 1490*420 1776*704 1
GX140 3.5 φ194 2070*420 2356*704 1.4
GX64 3 φ152 1320*285 1552*506 0.64
GX91 3 φ152 1800*285 2032*506 0.91
GX118 2.9 φ152 2280*285 2512*506 1.18

Applicable Material for Plates of Plate Heat Exchanger
 For raw material steel sheet, SHINEHEAT only select Qualified Steel Mill as specifed as following chart, not allow any low quality raw material in production.
For Specific Material Certificate, please contact with SHINEHEAT to obtain.

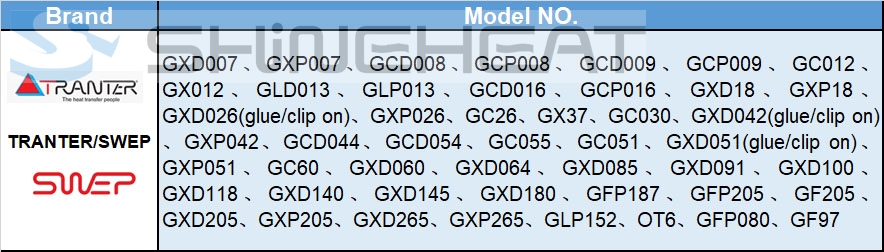

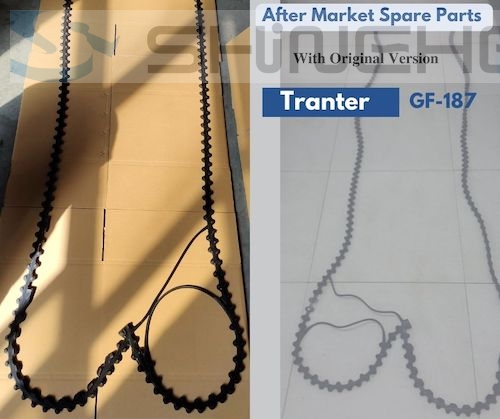

Supply List for Tranter Gaskets


Applicable Material for Gaskets of Plate Heat Exchanger

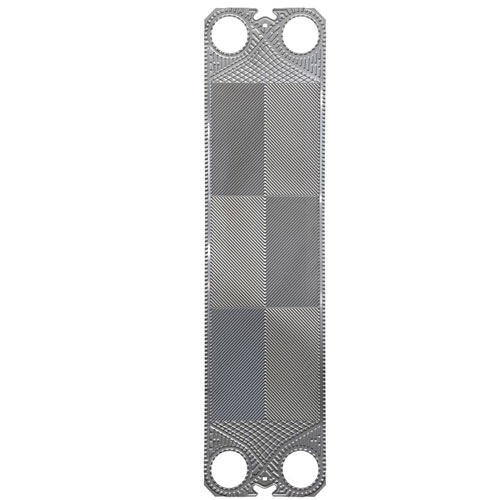

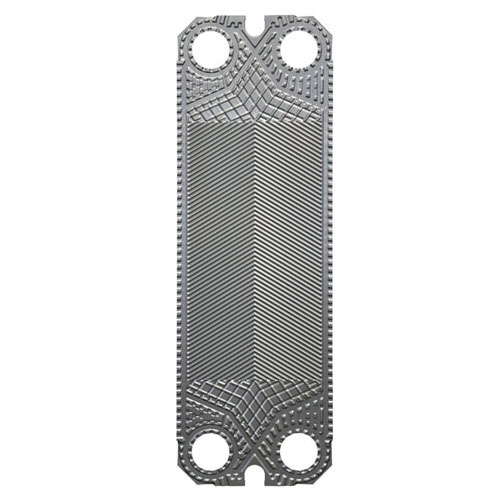

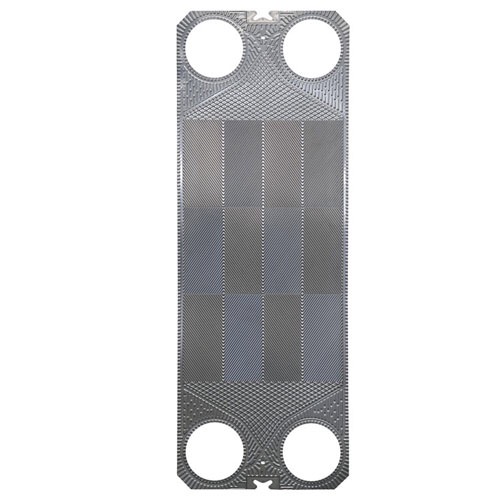

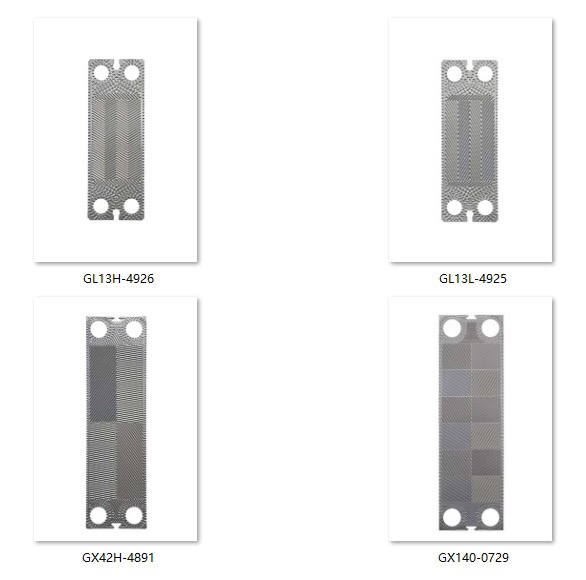

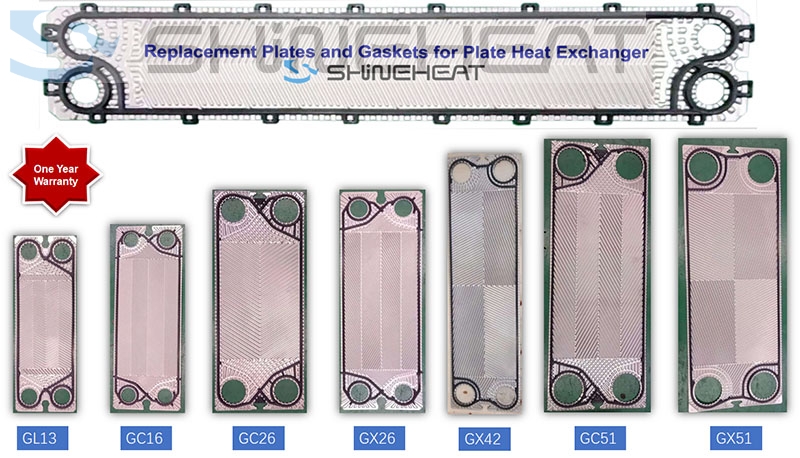

Tranter Plate Models Demo

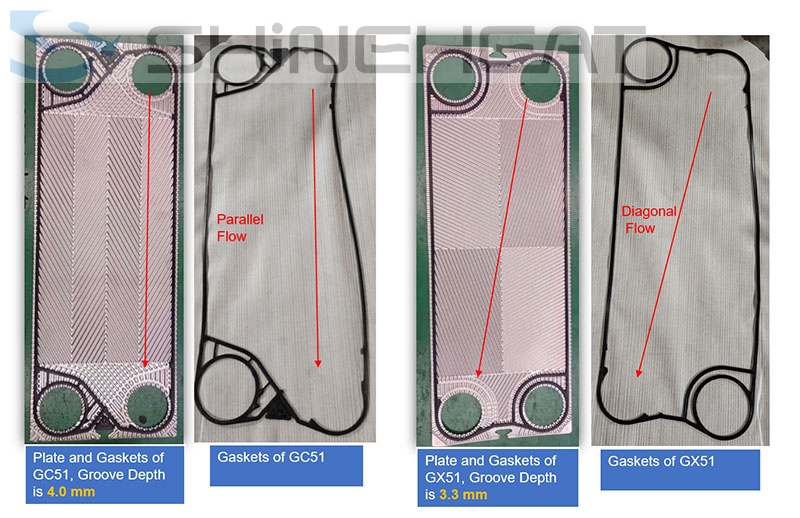

Tips 1, The main different features of GC51 and GX51 of Tranter Plate and Gasket

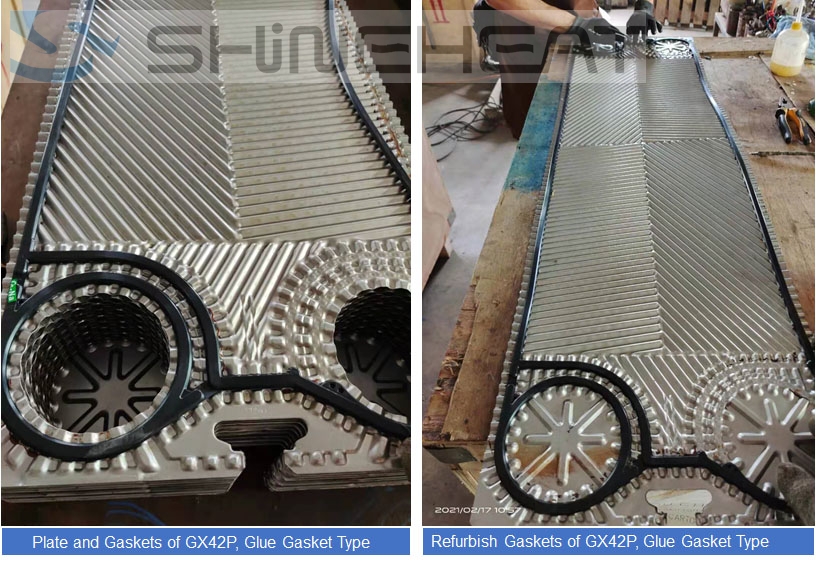

The refurbishment Job for GX042P Glue Type Gaskets for Plates

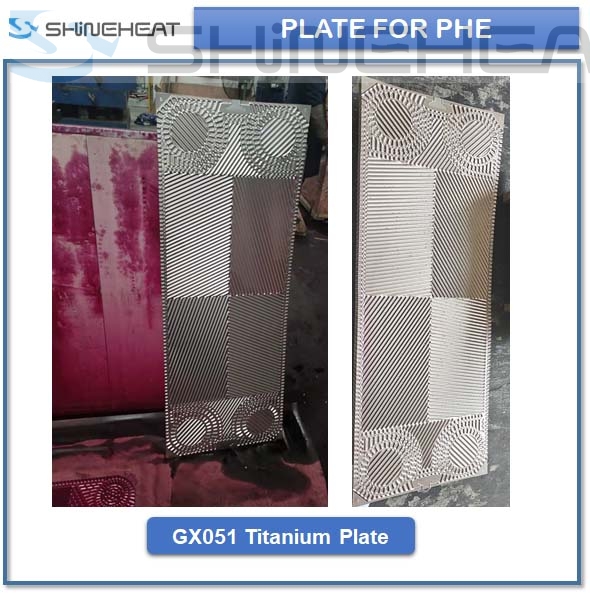

The refurbishment Job for GX051 Titanium Plates for Plate Heat Exchanger


We are in position to offer Full range of Refurbishment and Replacement Plates and Gaskets for Plate Heat Exchanger
