M10M Replacement Plates & Gaskets for Alfa Laval

Item No.: M10M

SHINEHEAT supplies aftermarket replacement plates & gaskets for Alfa Laval M10M plate heat exchangers. Send the full model code, existing part photographs and required quantity for configuration review.

INQUIRY PDF Format

Description

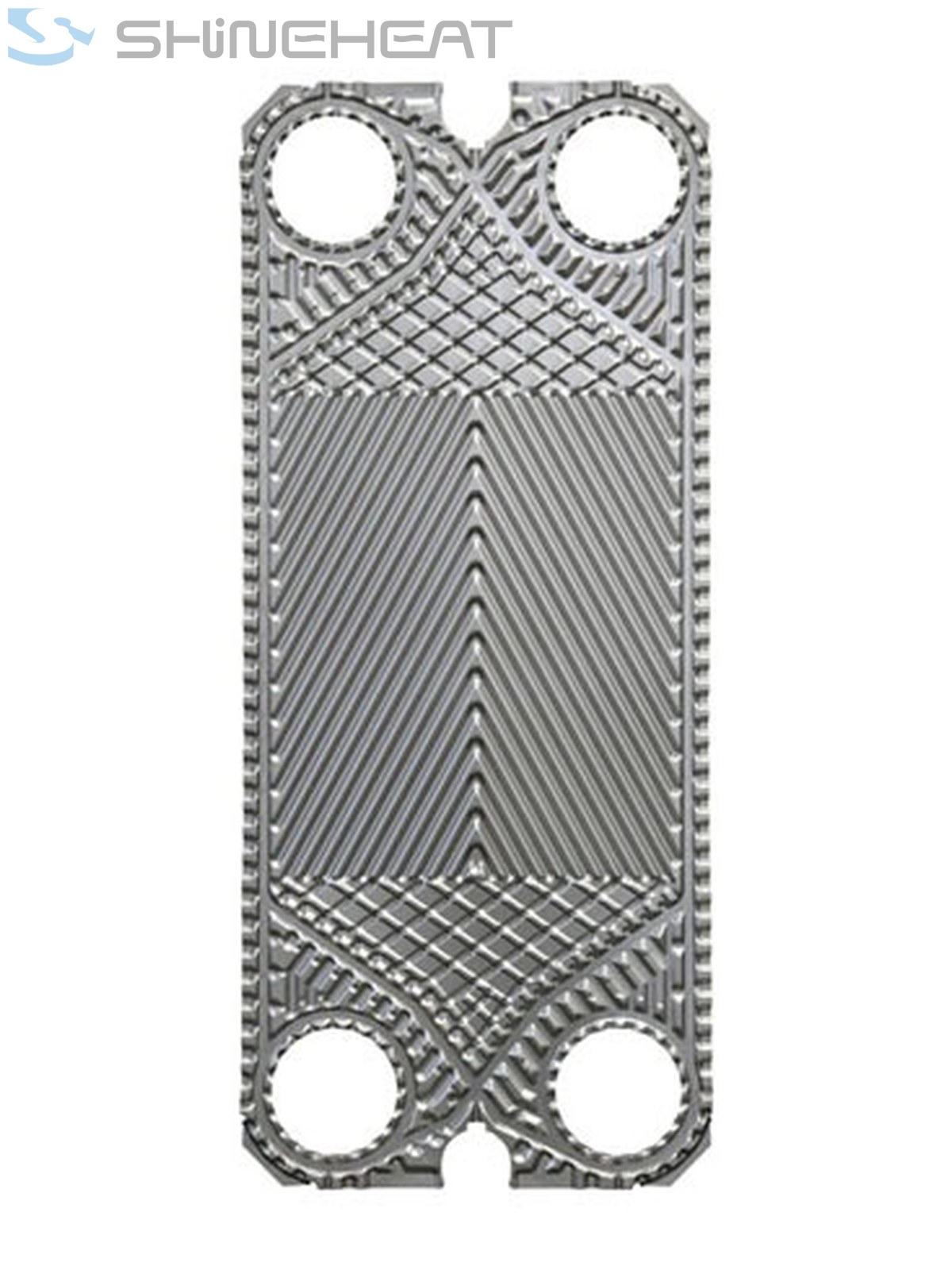

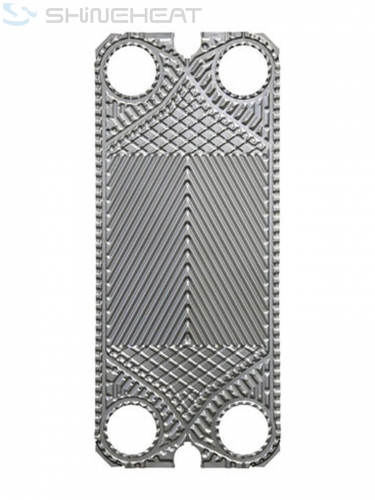

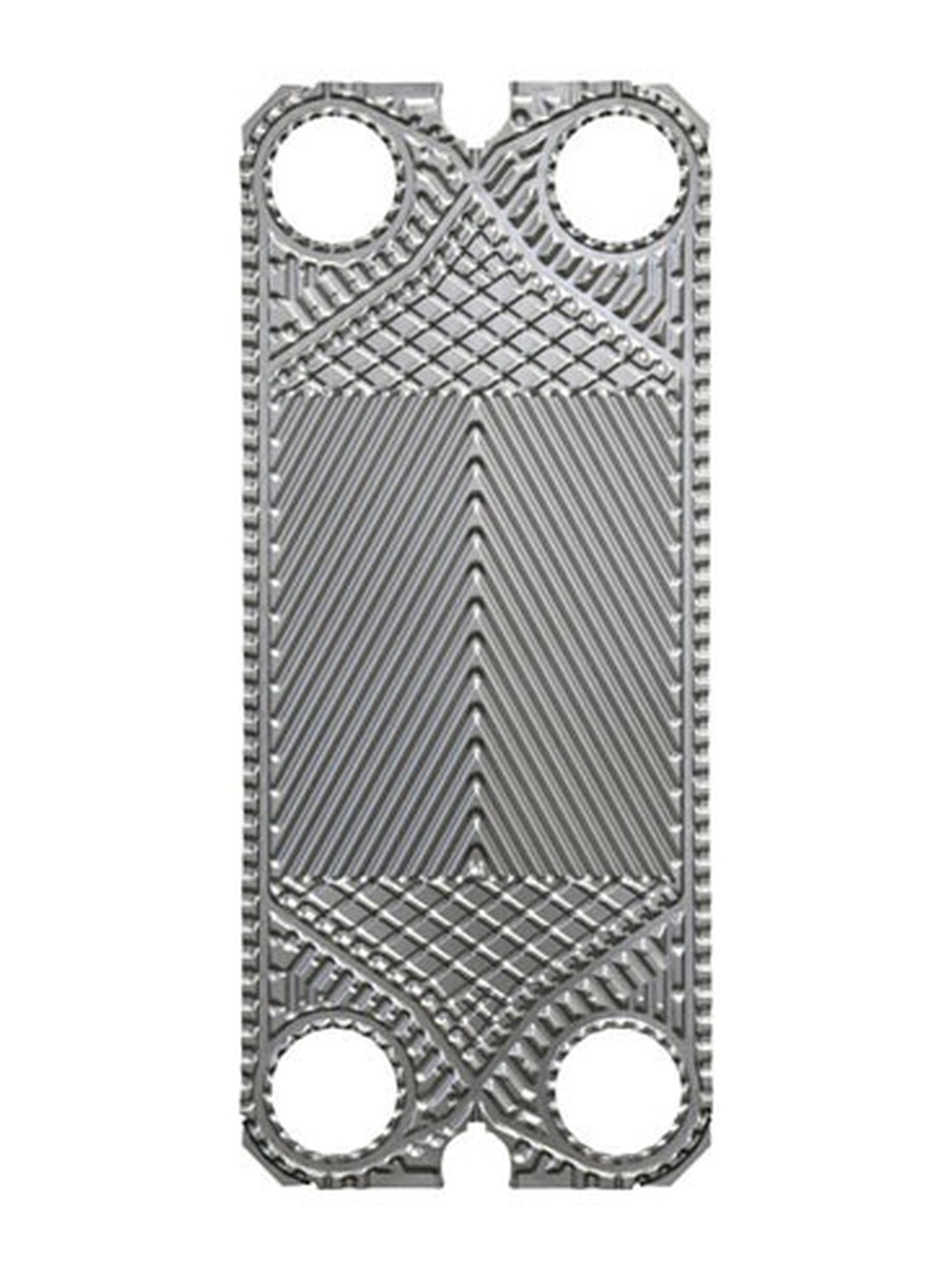

M10M Alfa Laval replacement plate display — M10M plate presentation image from the supplied product image. Confirm the final configuration from the existing part and approved drawing.

M10M replacement plates & gaskets

The display image shows the supplied L-pattern reference. Specify the required pattern and plate sequence; different patterns must not be assumed interchangeable.

Enquire about M10M

Match your installed parts

Send the nameplate and full plate code, photographs of both faces and the sealing groove, plus the required quantities. Material and configuration are reviewed for your service conditions.

Information needed for your M10M quotation

Equipment nameplate, complete model and plate marking, including pattern and variant.
Plate and gasket photographs, opening arrangement, sealing groove and attachment details.
Overall dimensions, port centre distances, port diameter, plate material and thickness.
Plate arrangement or GA drawing, available calculation sheet or data sheet.
Operating fluids, temperatures, pressures and cleaning conditions for material review.
Required quantities, delivery country and requested date.

Before ordering

Original equipment reference	Alfa Laval M10M
Parts scope	Independent aftermarket replacement plates & gaskets
Configuration and material	To be confirmed against the existing component, drawings and service conditions
Quantity and delivery	Availability and lead time are reviewed for the requested quantity and destination

M10M replacement parts questions

Are these original Alfa Laval parts?

SHINEHEAT supplies independent aftermarket replacement parts. The brand and model identify the original equipment reference and do not imply OEM manufacture or affiliation.

Is the model code enough to confirm compatibility?

No. The full code, pattern, dimensions, opening arrangement, gasket profile and material must also be checked.

Can the display image be used for dimensional approval?

No. The image is a presentation reference. Use the existing part, measured dimensions and approved drawings for final matching.
