GC026 Replacement Plates & Gaskets for Tranter

Item No.: GC026

SHINEHEAT supplies aftermarket replacement plates & gaskets for Tranter GC026 plate heat exchangers. Send the full model code, existing part photographs and required quantity for configuration review.

INQUIRY PDF Format

Description

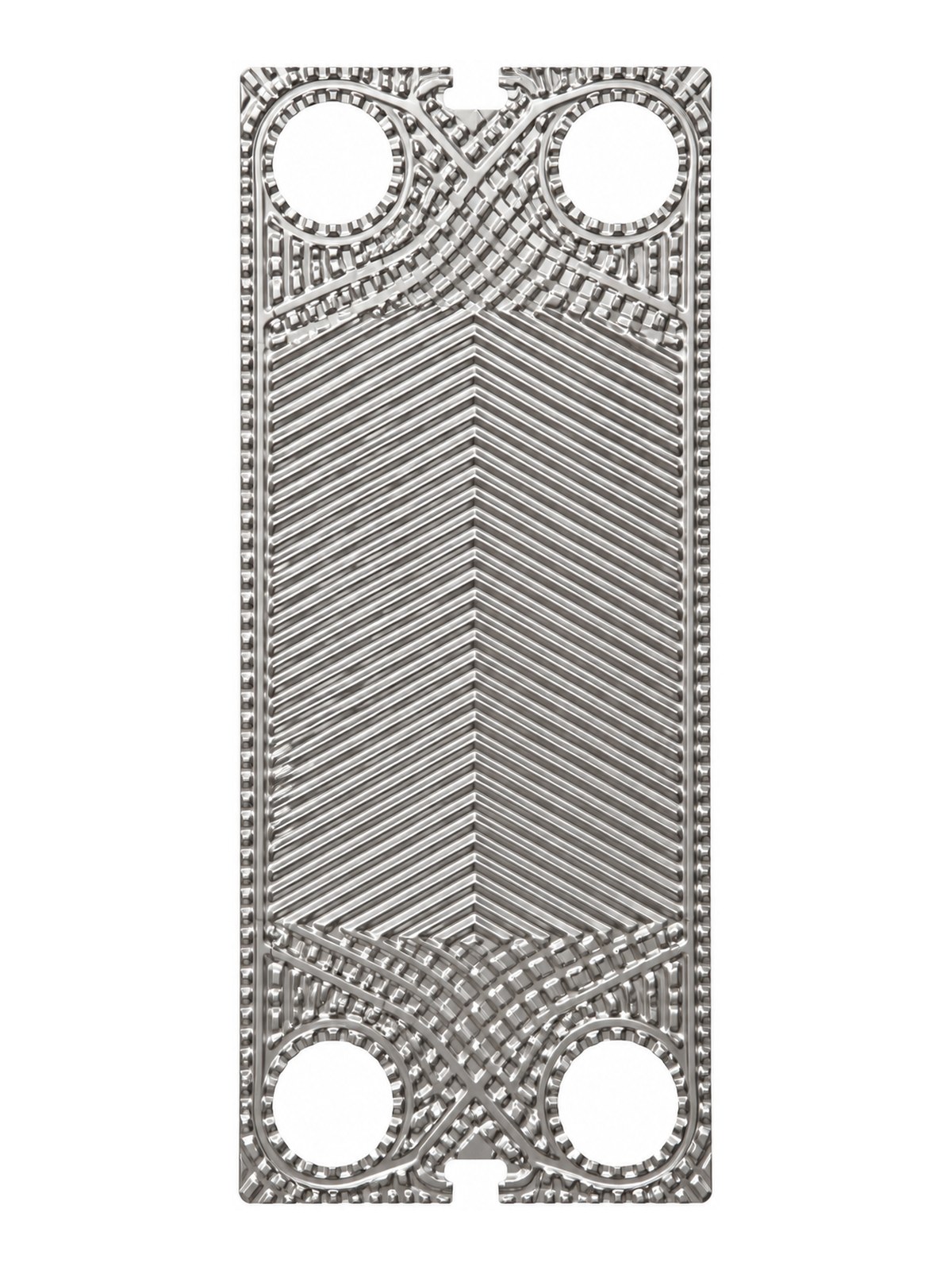

Tranter GC026 replacement plate display — GC026 plate presentation image enhanced from a supplied photograph. Confirm the final configuration from the existing part and approved drawing.

GC026 replacement plates & gaskets

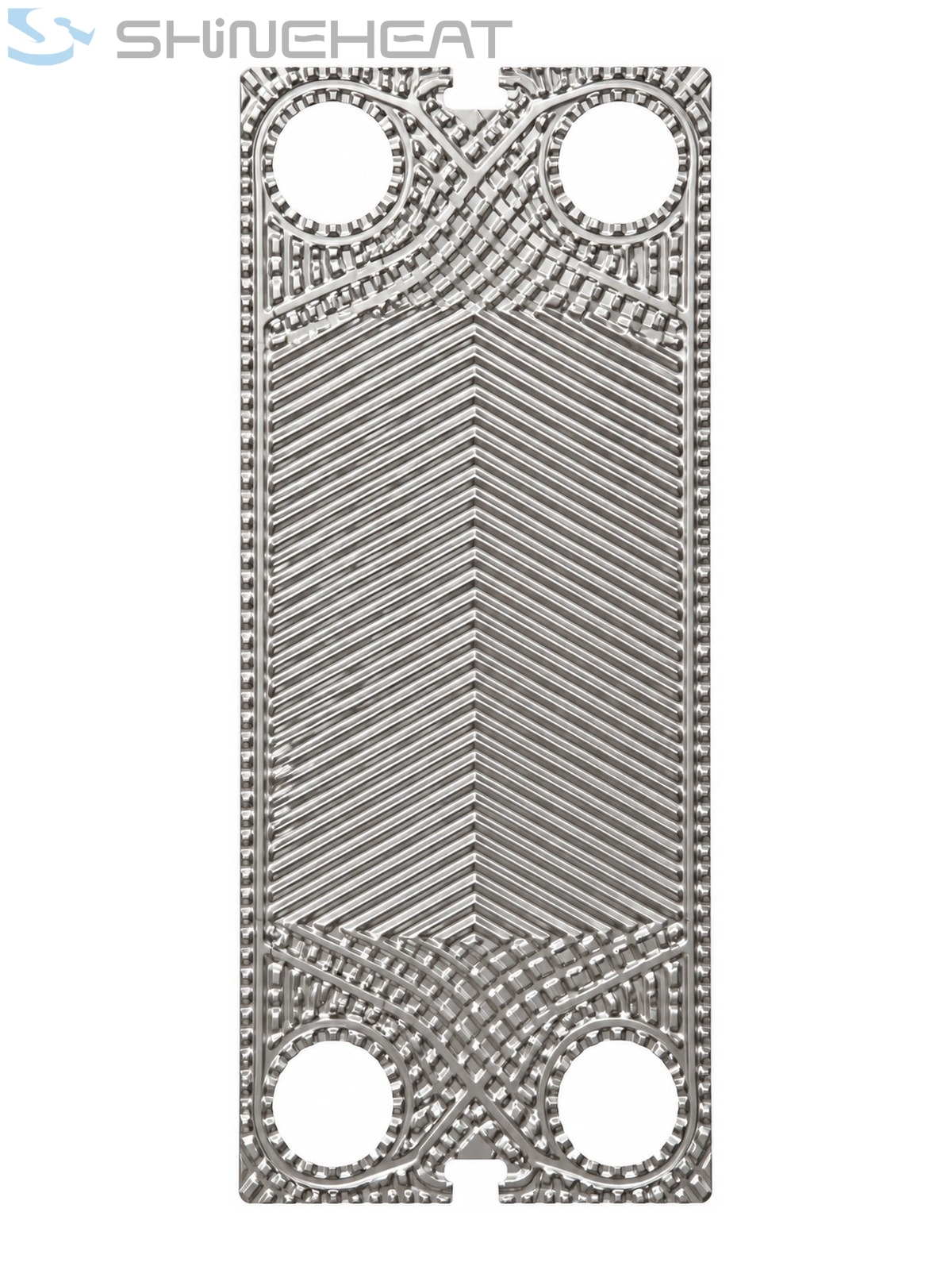

The GC026 presentation shows the supplied H-pattern plate with four open ports. Specify H/L pattern, opening arrangement and gasket configuration when requesting parts.

Model naming: GC026 and GC26 are alternative spellings covered on this page. Include any pattern or configuration suffix shown on your existing part.

Enquire about GC026

Match your installed parts

Send the nameplate and full plate code, photographs of both faces and the sealing groove, plus the required quantities. Material and configuration are reviewed for your service conditions.

Information needed for your GC026 quotation

Equipment nameplate, complete model and plate marking, including pattern and variant.
Plate and gasket photographs, opening arrangement, sealing groove and attachment details.
Overall dimensions, port centre distances, port diameter, plate material and thickness.
Plate arrangement or GA drawing, available calculation sheet or data sheet.
Operating fluids, temperatures, pressures and cleaning conditions for material review.
Required quantities, delivery country and requested date.

Before ordering

Original equipment reference	Tranter GC026
Parts scope	Independent aftermarket replacement plates & gaskets
Configuration and material	To be confirmed against the existing component, drawings and service conditions
Quantity and delivery	Availability and lead time are reviewed for the requested quantity and destination

GC026 replacement parts questions

Are these original Tranter parts?

SHINEHEAT supplies independent aftermarket replacement parts. The brand and model identify the original equipment reference and do not imply OEM manufacture or affiliation.

Is the model code enough to confirm compatibility?

No. The full code, pattern, dimensions, opening arrangement, gasket profile and material must also be checked.

Can the display image be used for dimensional approval?

No. The image is a presentation reference. Use the existing part, measured dimensions and approved drawings for final matching.
