Complete unit replacement
NT50X replacement, supplied as a complete SHINEHEAT unit
A SHINEHEAT complete gasketed plate heat exchanger replacement for NT50X installations, configured after review of the existing equipment interfaces and thermal duty.
The replacement scope covers the assembled frame, plate pack, gaskets and connections in the agreed configuration. Matching starts with the existing nameplate, general arrangement drawing and operating data.
Request an NT50X replacement quotationLooking for NT50X spare plates or gaskets?
Confirm nozzle positions, connection standards, footprint, operating fluids and thermal performance before approving a replacement.

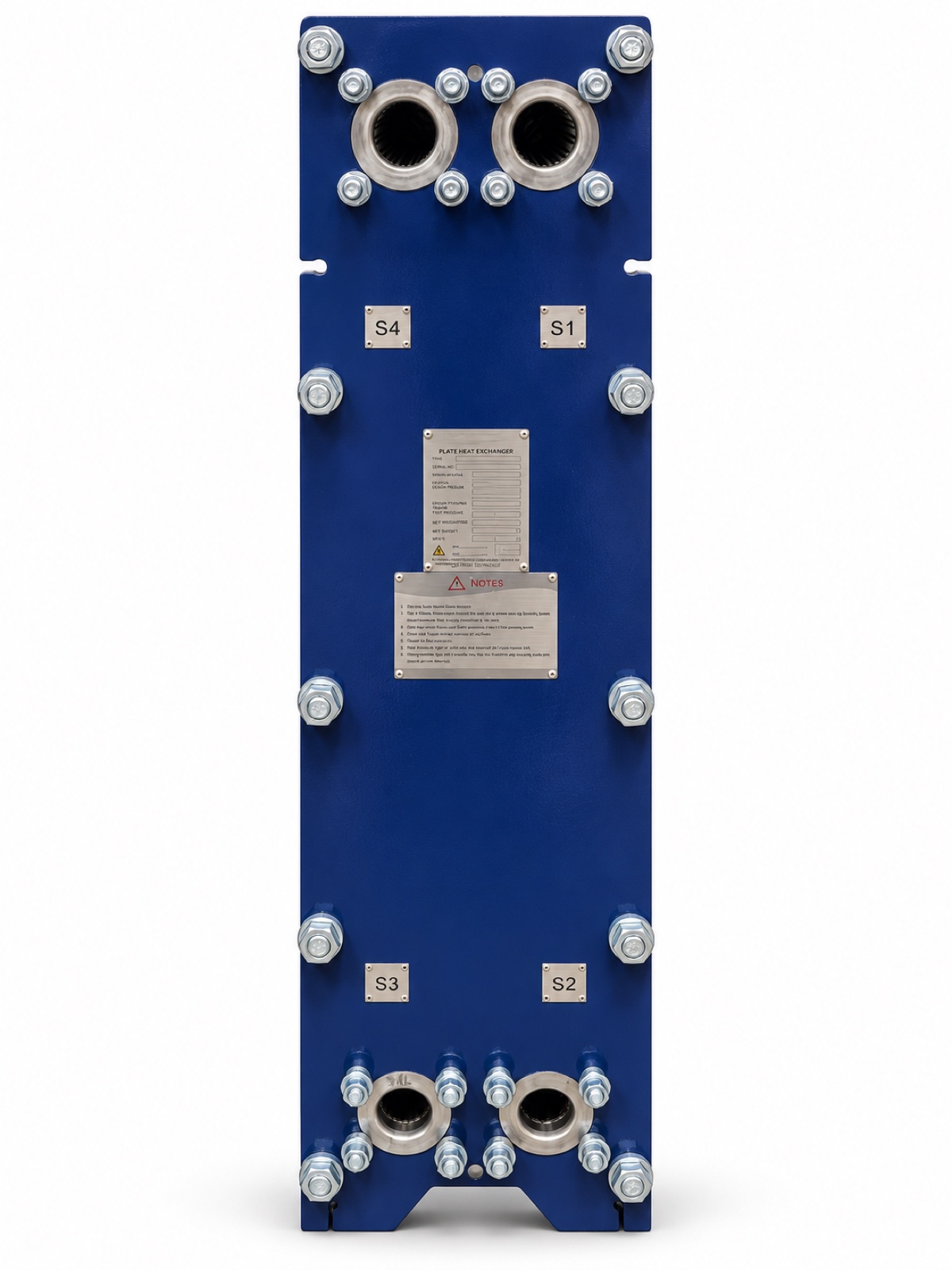

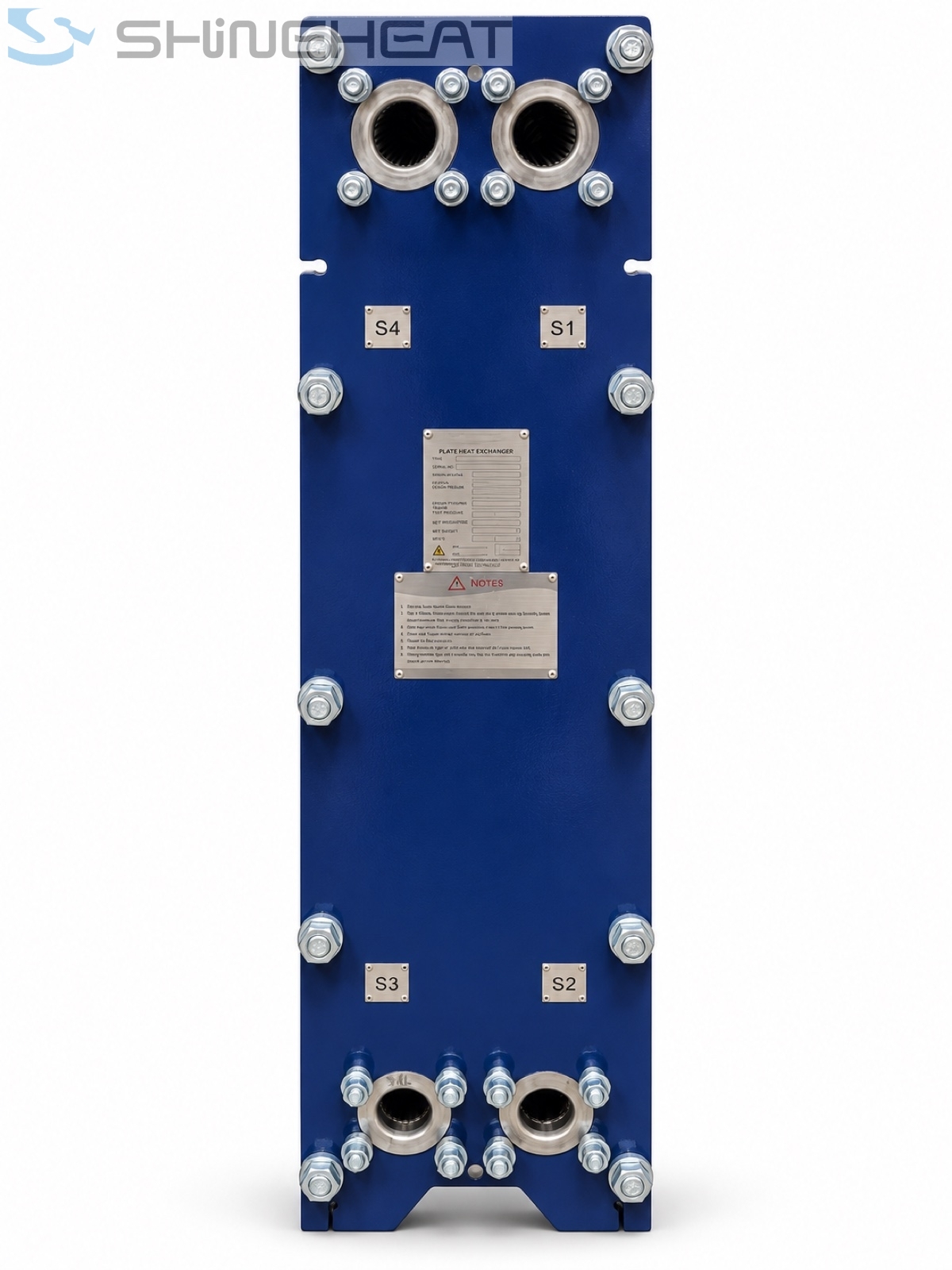

Photographed equipment reference

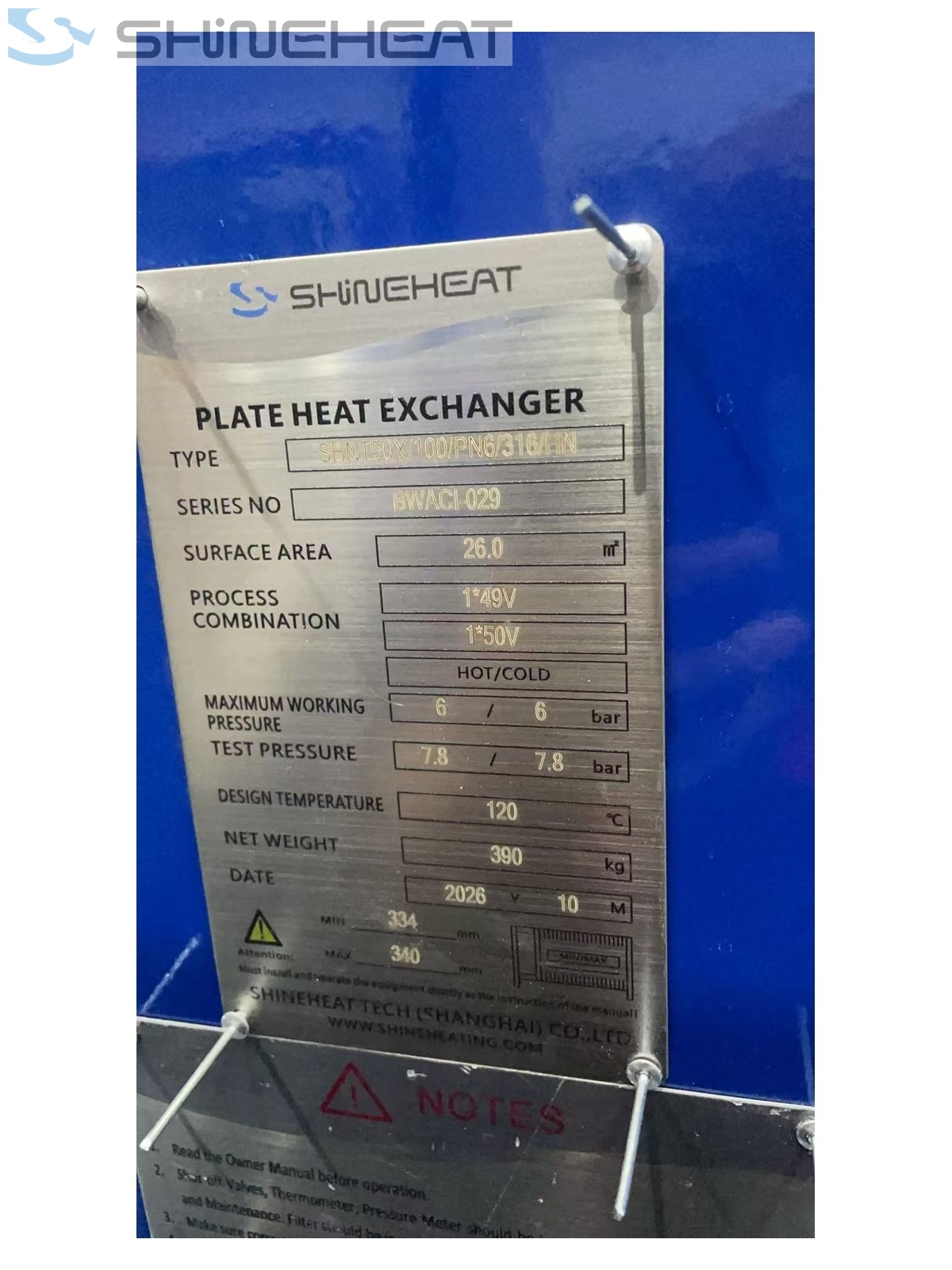

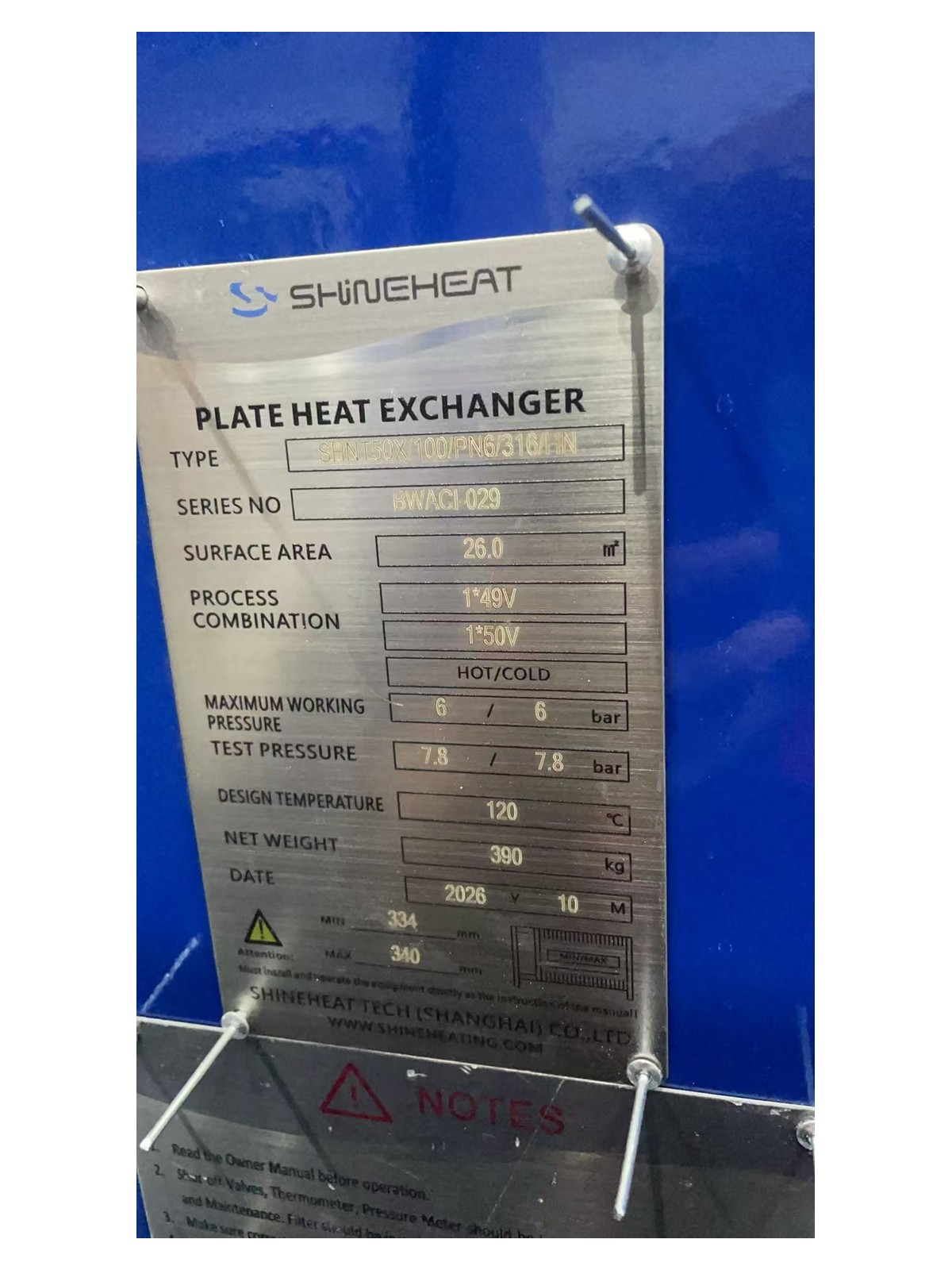

Nameplate data from the displayed SHINEHEAT unit
The values below are transcribed from the supplied nameplate photograph. They describe this unit and are not universal ratings for every NT50X replacement.
| SHINEHEAT model family | SHNT50X |
|---|---|
| Replacement installation reference | NT50X |
| Heat transfer area | 26.0 m² |
| Maximum working pressure — hot / cold | 6 / 6 bar |
| Test pressure — hot / cold | 7.8 / 7.8 bar |
| Design temperature | 120°C |
| Net weight | 390 kg |
| Nameplate date | October 2026 |
The full type-code suffix, serial number, plate and gasket specifications are checked against the project documents. Heat duty, flow rates and allowable pressure drop are confirmed during selection.
What we check for a complete NT50X replacement
Installation interfaces
Compare the overall dimensions, support and mounting positions, nozzle centre distances, connection direction, nominal sizes and flange or thread standards.
Thermal and hydraulic duty
Review both fluids, flow rates, inlet and outlet temperatures, heat load, allowable pressure drop and fouling allowance against the required duty.
Materials and operating limits
Agree the plate grade and thickness, gasket compound, design pressure and temperature, cleaning conditions and any documentation or inspection requirements.
Information needed for your quotation
- Existing equipment nameplate, complete model code and photographs of the installed exchanger.
- General arrangement and nozzle drawings, connection standards and available installation space.
- Hot- and cold-side fluids, flow rates, temperatures, working pressures and allowable pressure drops.
- Required plate and gasket materials, design conditions and cleaning method.
- Quantity, delivery destination, required date and inspection or documentation requirements.
NT50X complete replacement questions
Is this a complete heat exchanger or a spare-parts offer?
This page covers a complete SHINEHEAT heat exchanger replacement. For individual plates and gaskets, use the separate NT50X replacement-parts page.
Does the model reference alone establish direct installation compatibility?
No. The existing interfaces, complete configuration and thermal duty must be reviewed. The approved drawing and agreed technical specification establish the final replacement basis.
Do the displayed nameplate ratings apply to every supplied unit?
No. The displayed 26.0 m², 6 bar and 120°C values belong to the photographed unit. The offered configuration and ratings are confirmed for each project.
Browse gasketed plate heat exchangers · Browse replacement plates and gaskets
SHINEHEAT supplies the complete replacement unit under its own brand. GEA / Kelvion and NT50X identify the original-equipment reference; they do not imply original-manufacturer supply or affiliation.
