Pre-Assembled Plate Heat Exchangers & Plate Packs

Flexible delivery solution

Pre-Assembled Plate Heat Exchangers

SHINEHEAT supplies pre-assembled plate-and-gasket packs, with an optional frame-accessory package, for compact shipment and assembly at the installation site.

A gasketed plate pack and an optional frame kit are supplied to the agreed component scope. The drawings, operating duty and assembly plan determine the final configuration.

View plate packs and frame-kit details Request an engineering review

Two packaged pre-assembled plate packs with open-port and closed-port configurations

Pre-assembled plate packs and optional frame kits

Review the plate arrangement, gasket compound, plate material and thickness, compressed dimension, frame interfaces and testing responsibilities before shipment. The scope is confirmed for each project.

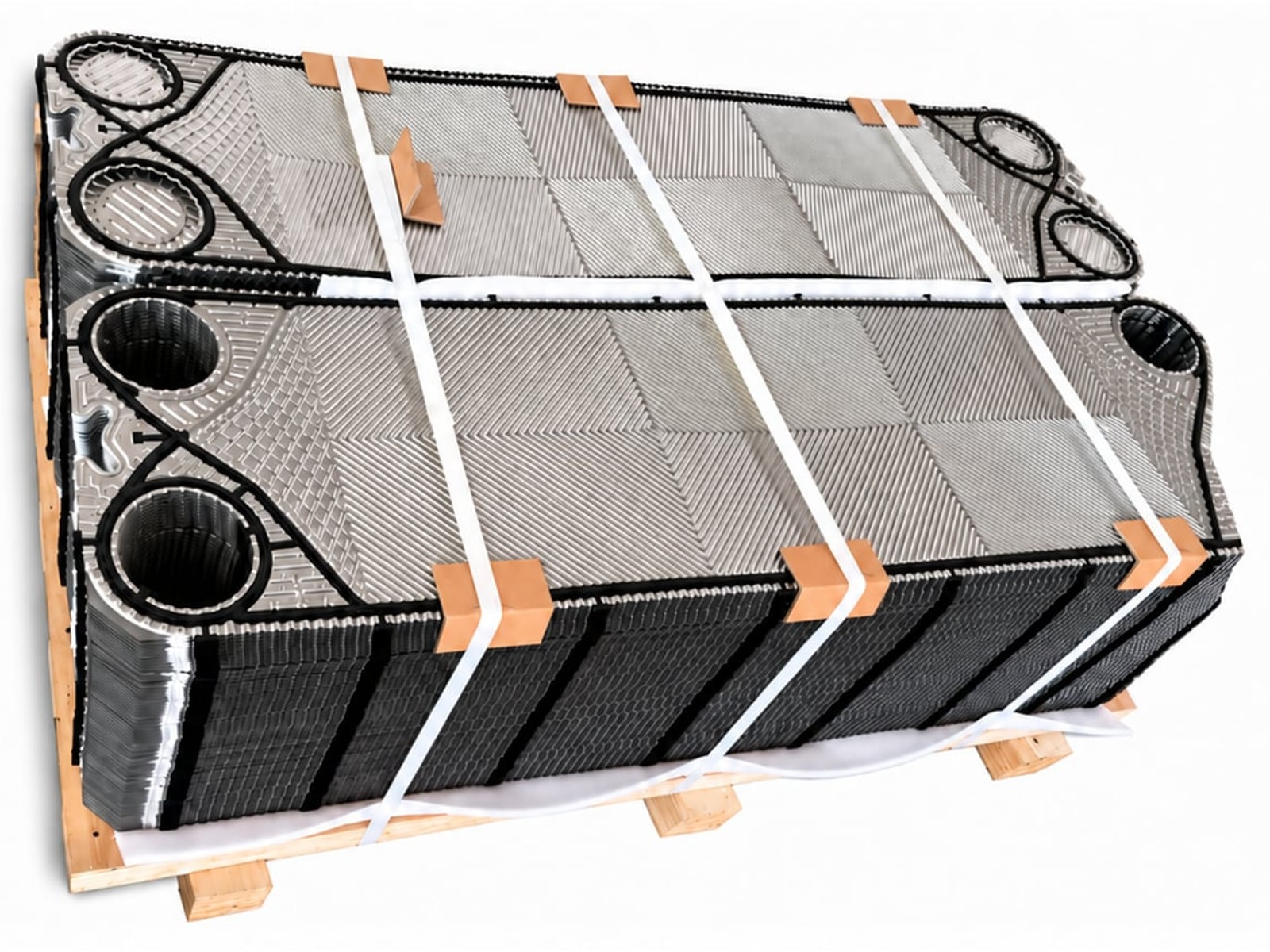

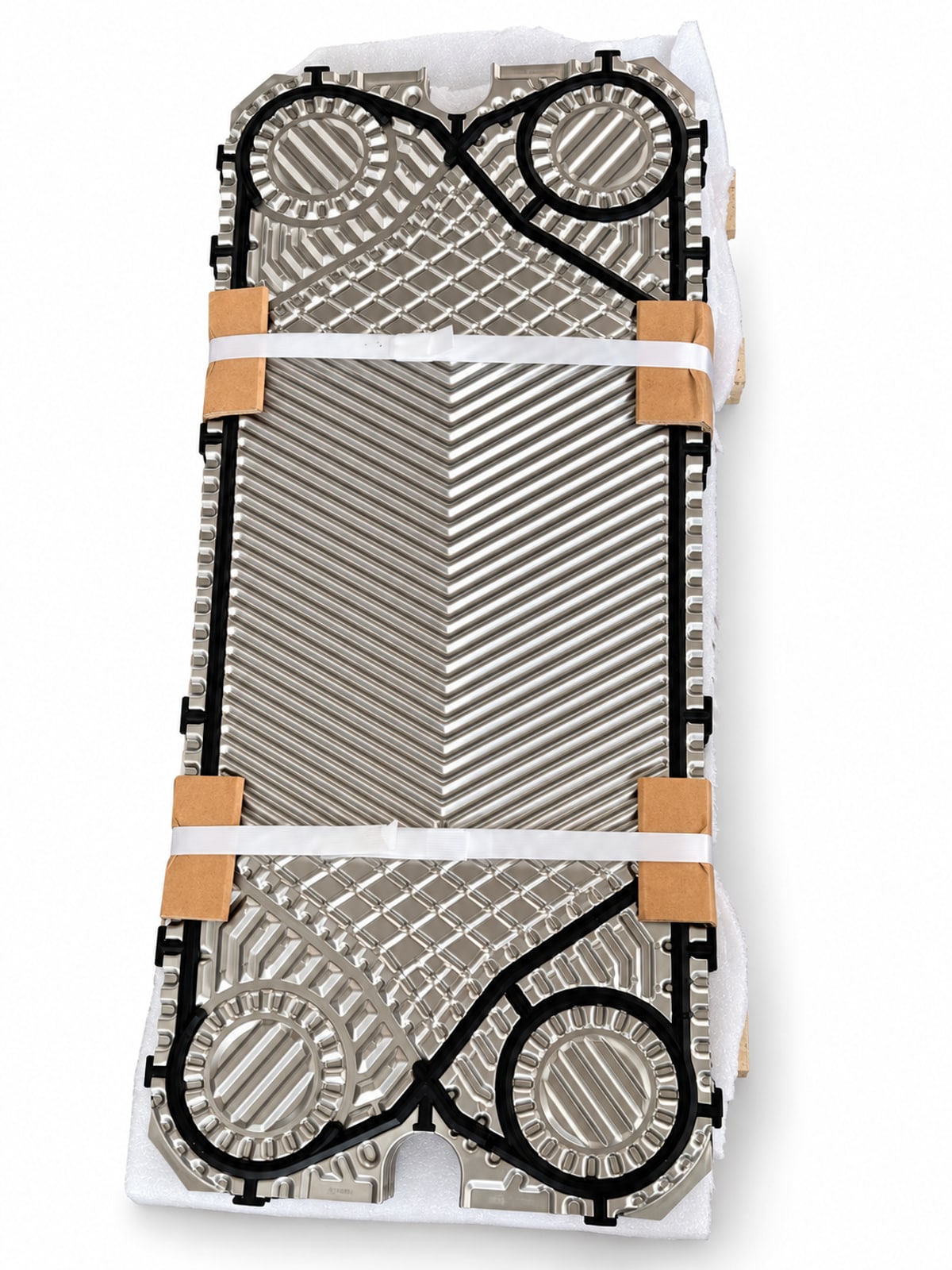

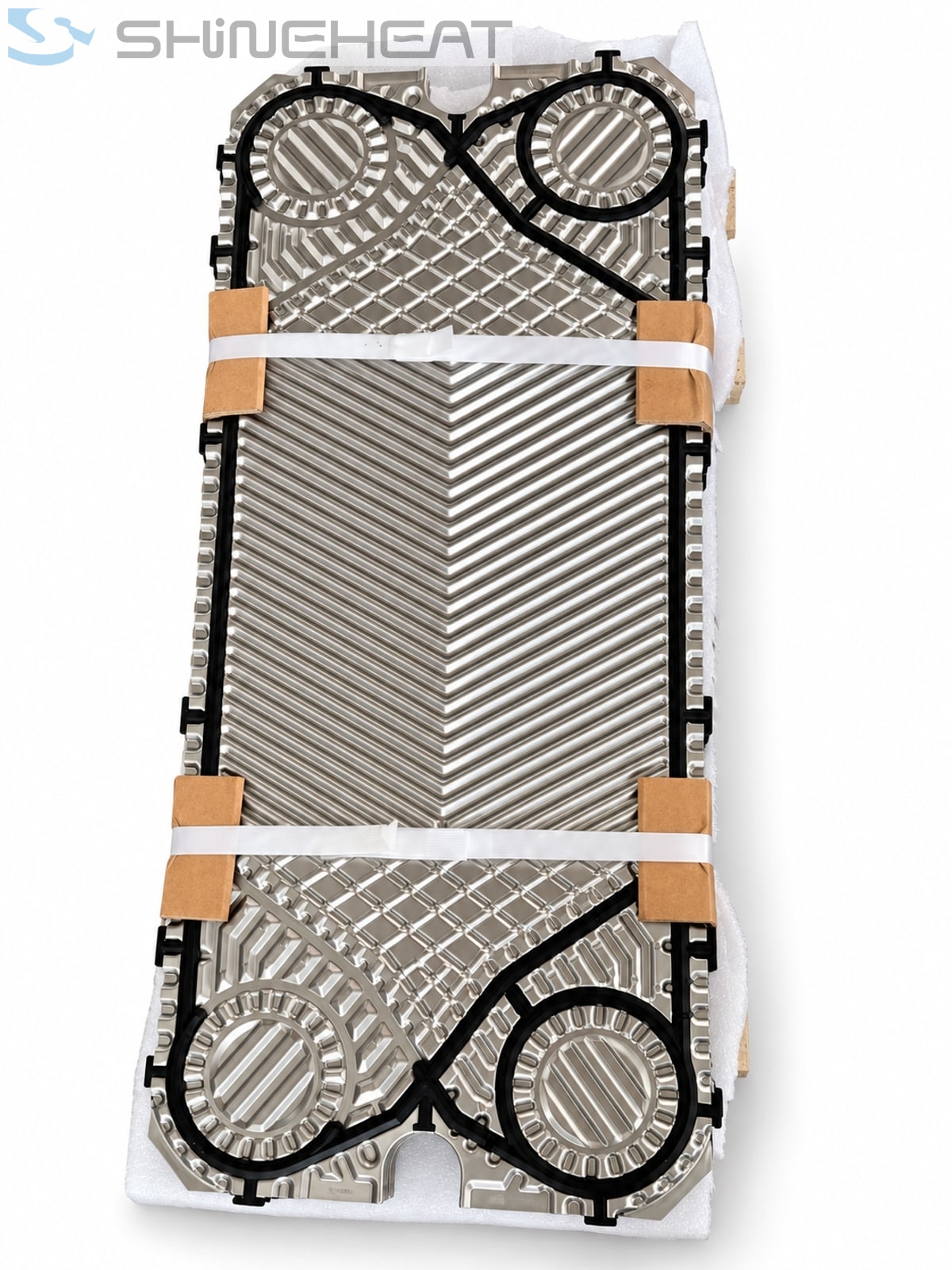

Pre-assembled stainless steel plate-and-gasket pack with protective shipping bands

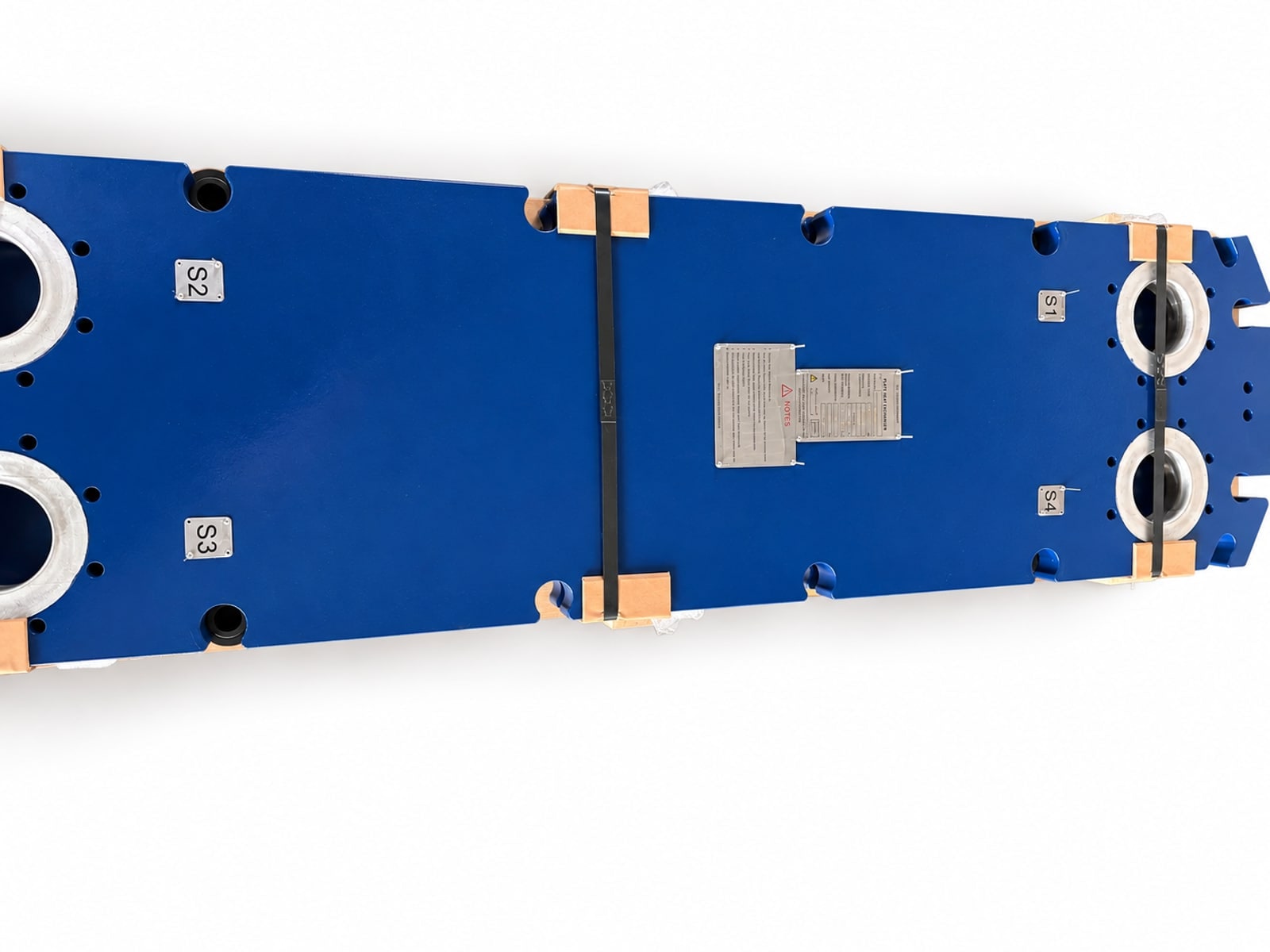

Packaged blue plate heat exchanger frame component with stainless steel connection openings

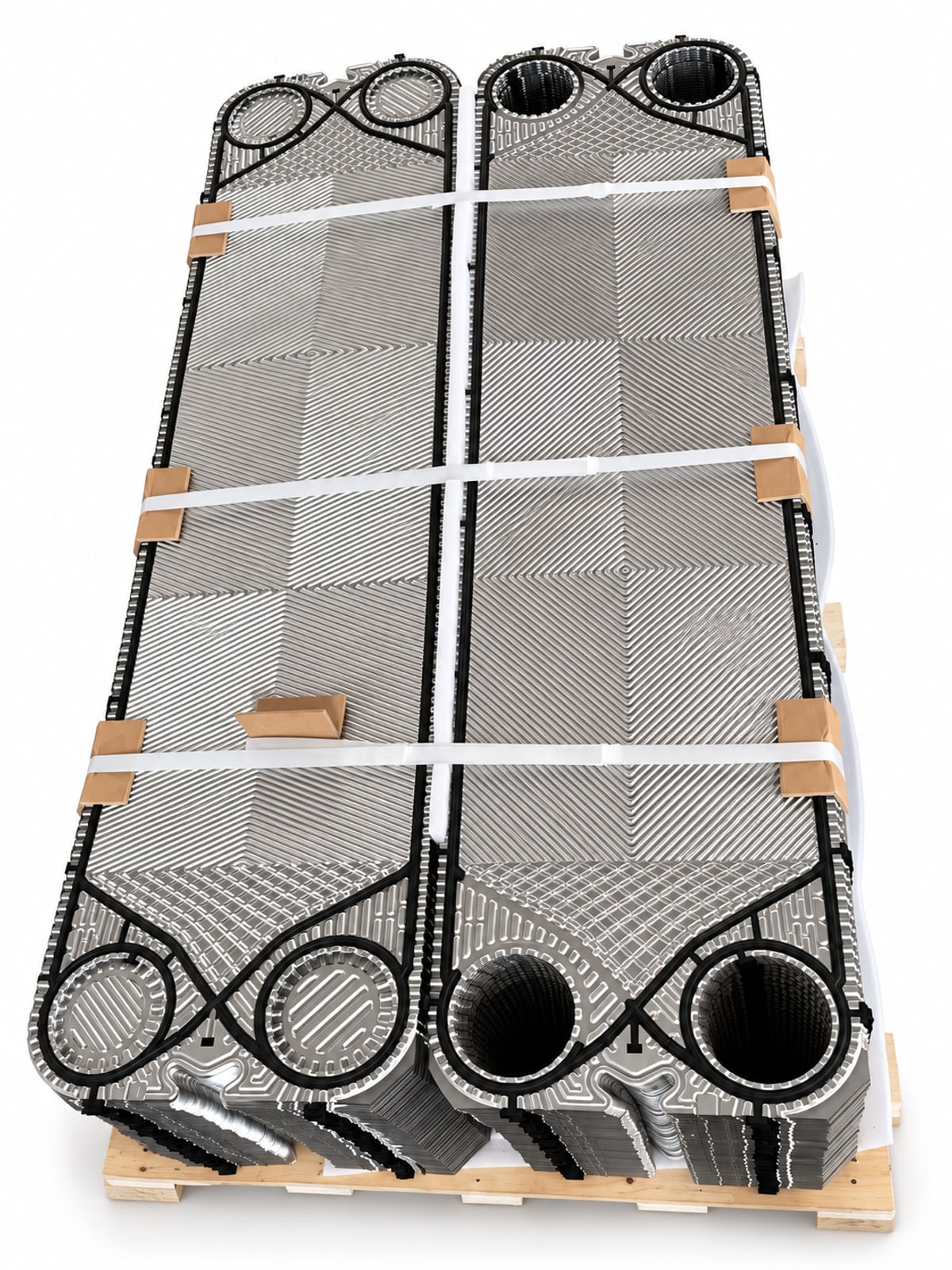

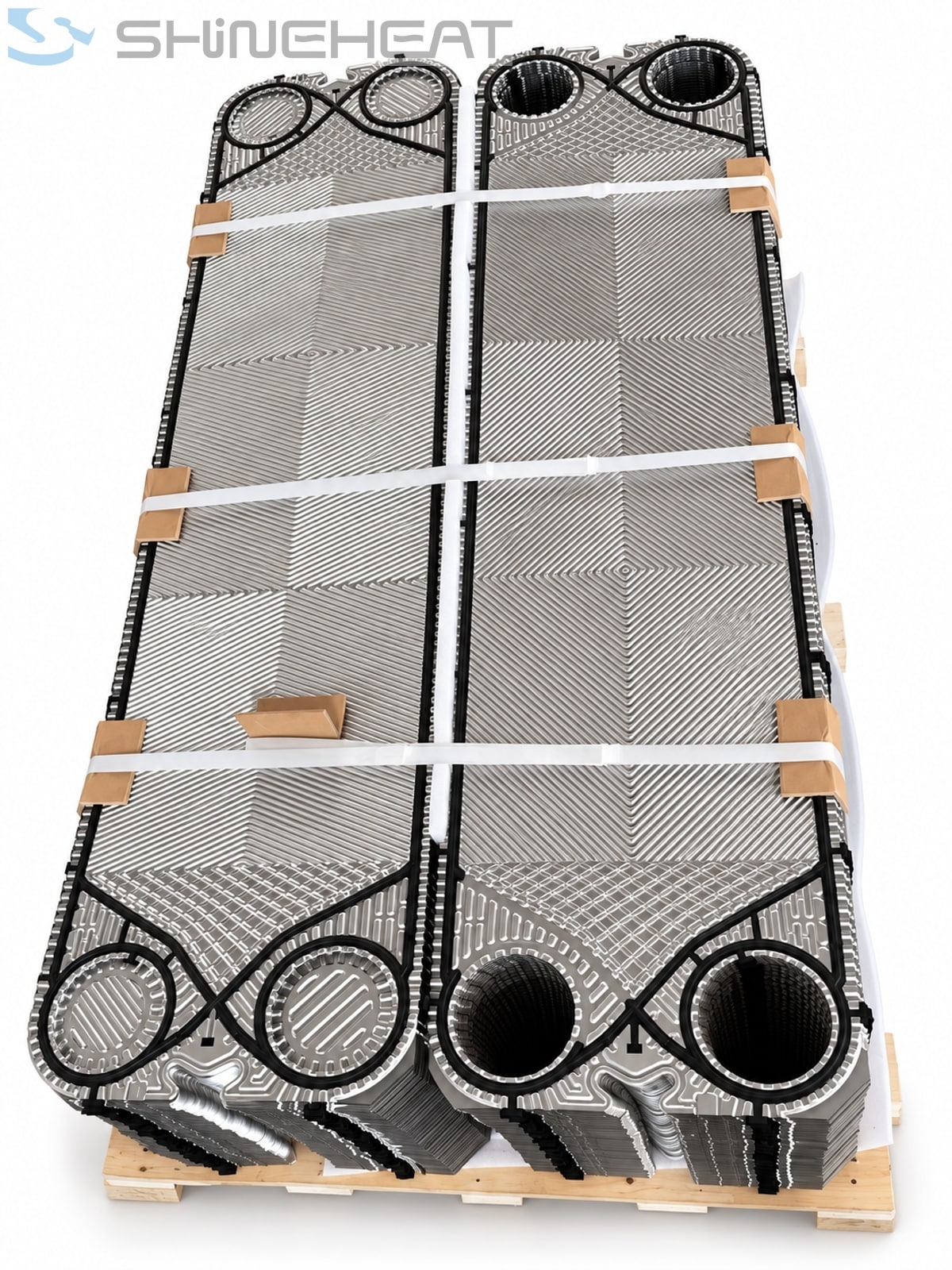

Pre-assembled gasketed plate packs lying on a wooden pallet, showing multilayer edges and protective bands

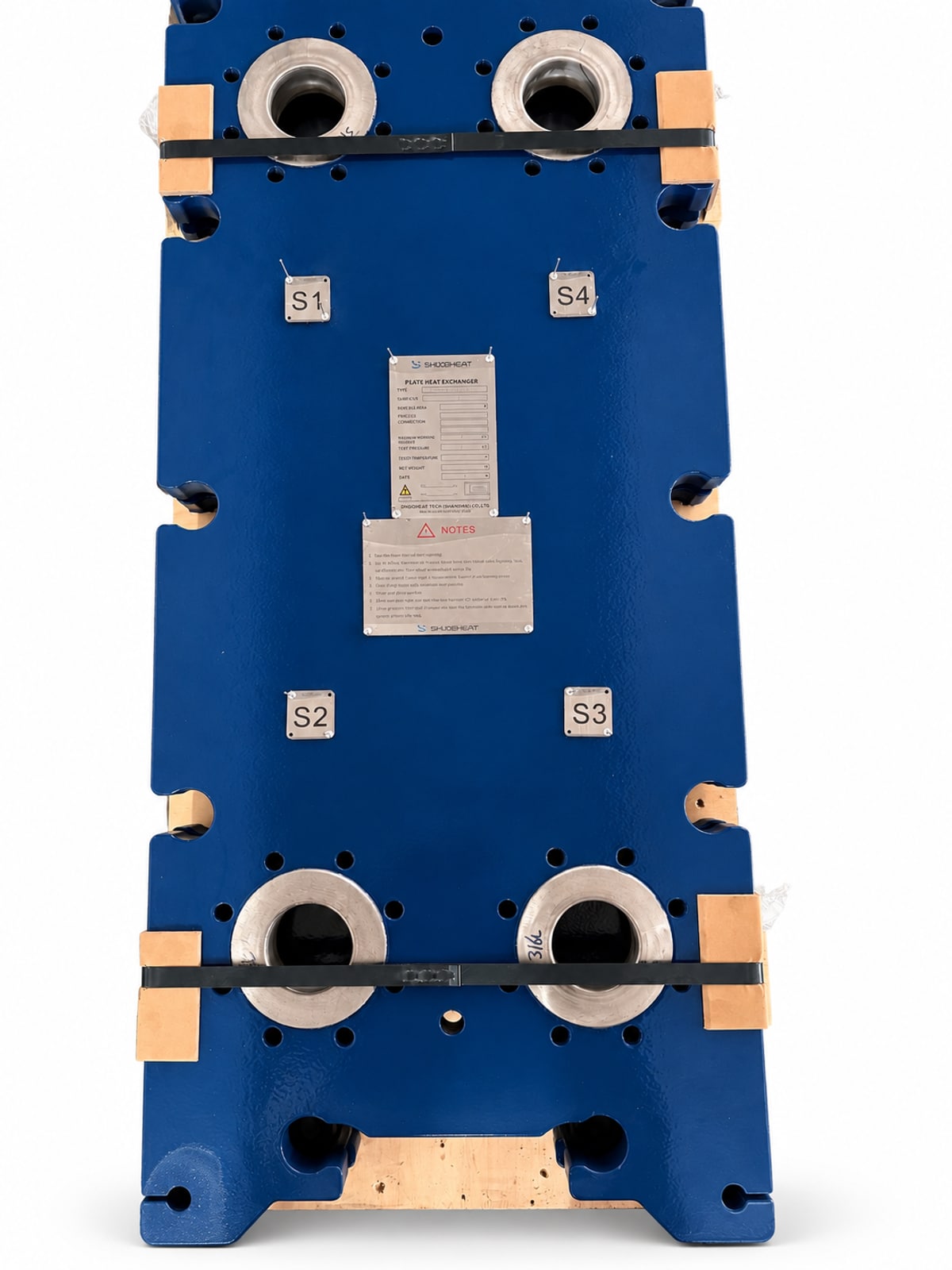

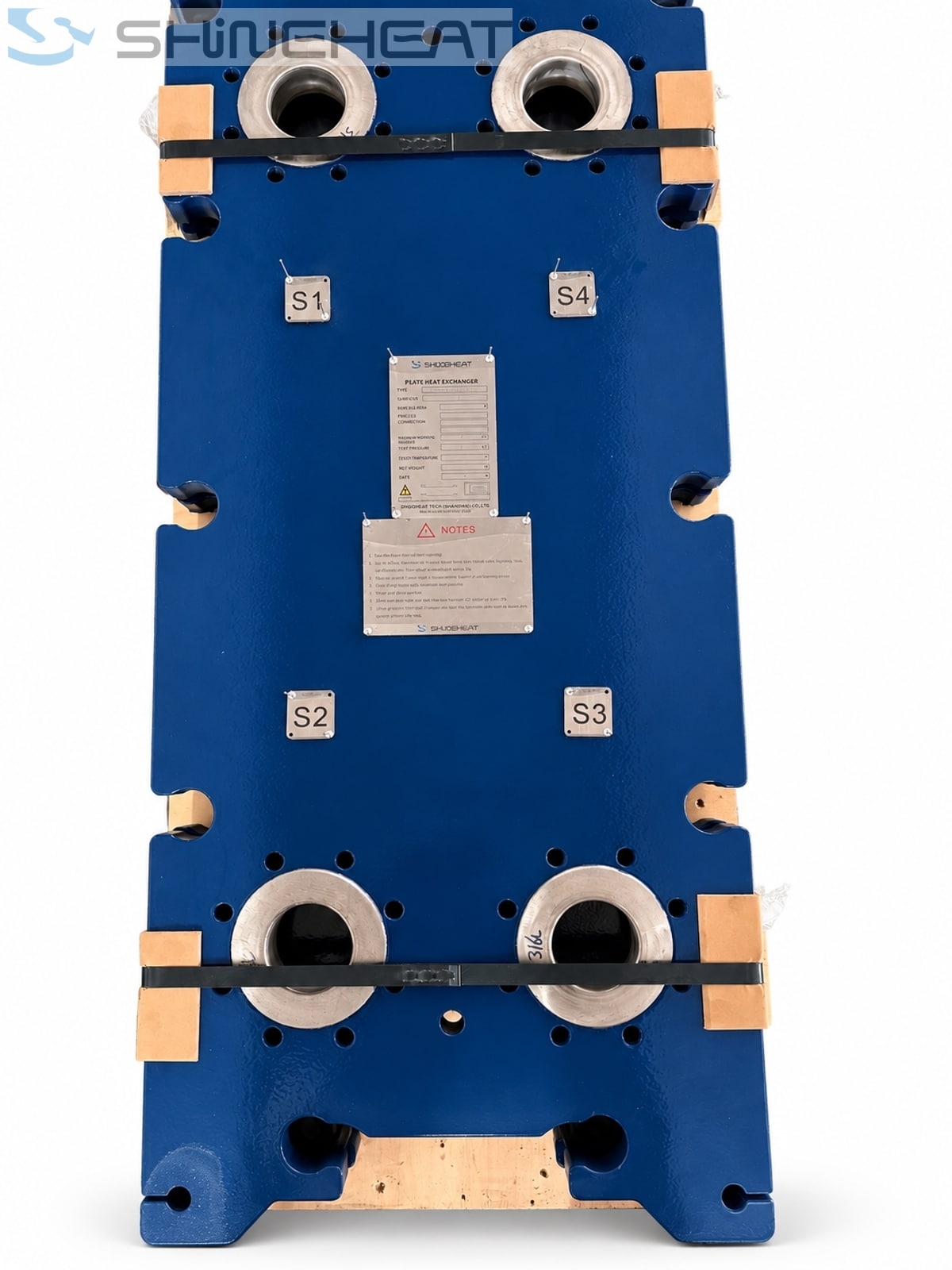

Close view of a packaged blue plate heat exchanger frame component with identification plates

Display photographs have been enhanced for presentation. Packaging, open-port and closed-port configurations are shown as supplied; the original drawings and project records govern technical verification.

Plate heat exchanger tie bolts and frame accessories

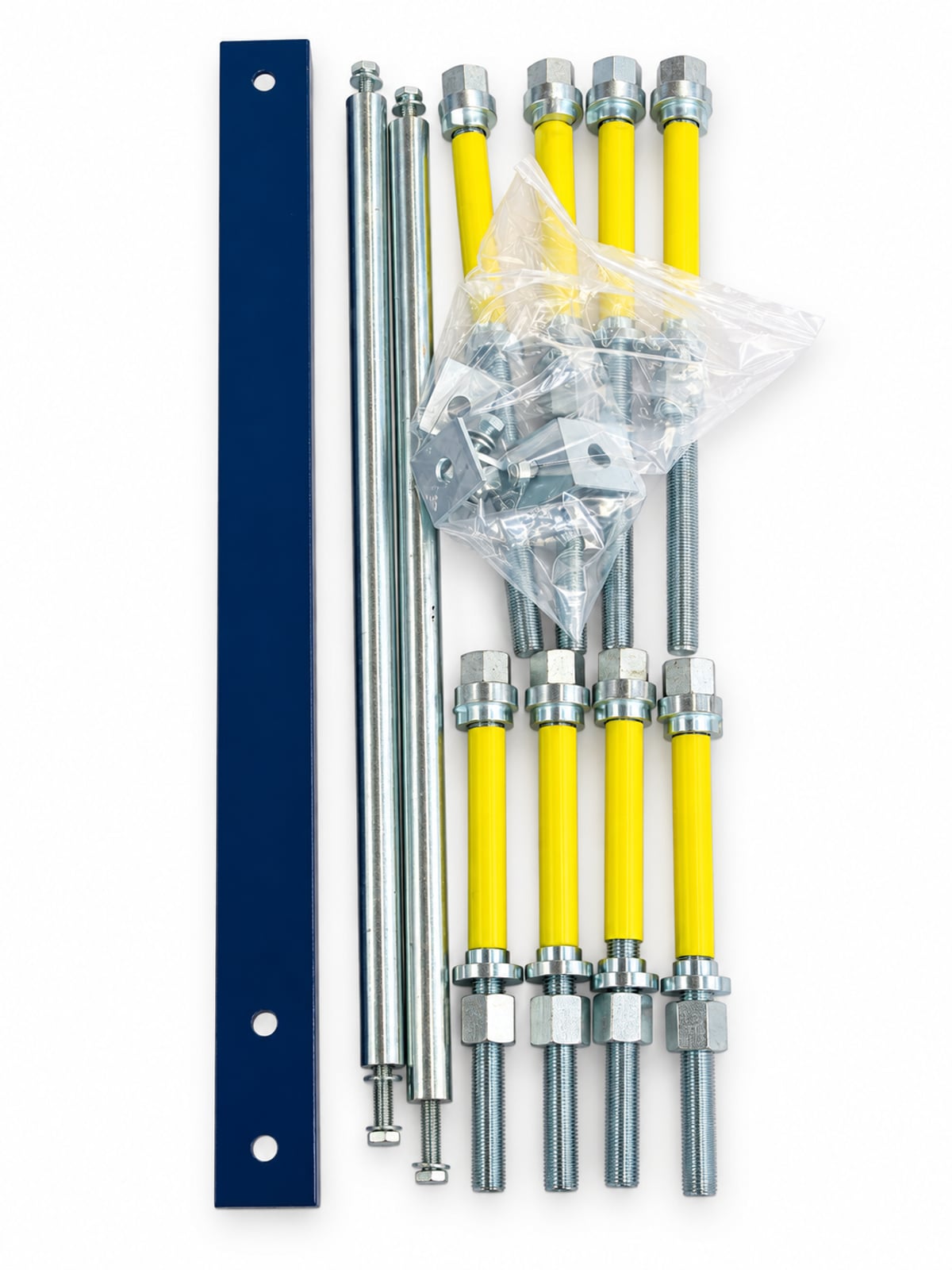

The photographed kit includes tie-bolt assemblies with nuts and washers, long rod components, a painted bar and bagged small hardware.

Confirm the bolt length, thread size, material grade, nut and washer specification, tightening method and quantity against the approved frame drawing and project packing list.

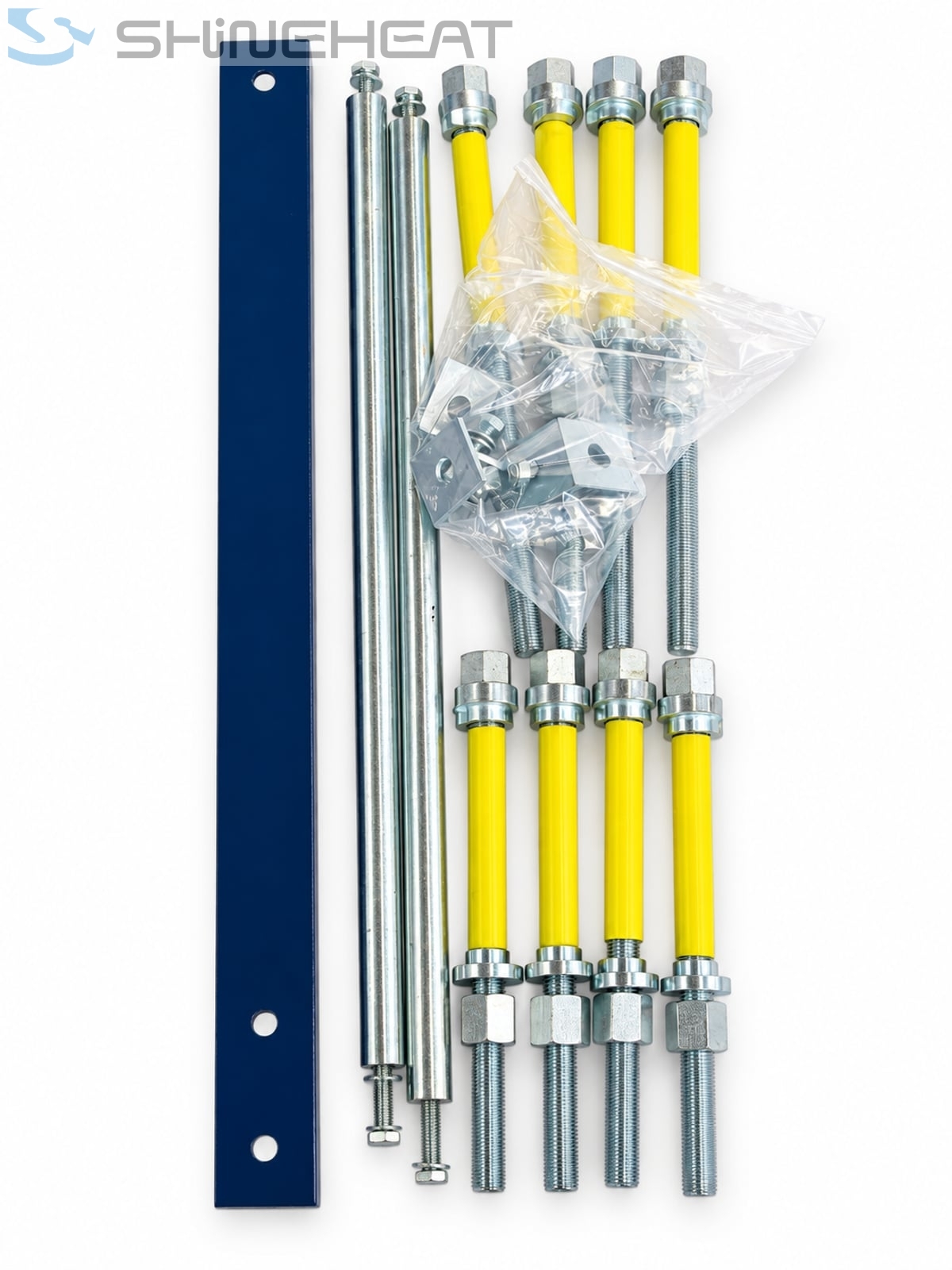

Plate heat exchanger tie bolts, nuts, rod components and frame-kit accessories on a white background

Original equipment nameplate references

The following nameplates belong to two separate pictured units. Their values are reference data for those units and do not define universal capacity, materials or ratings for pre-assembled plate heat exchangers.

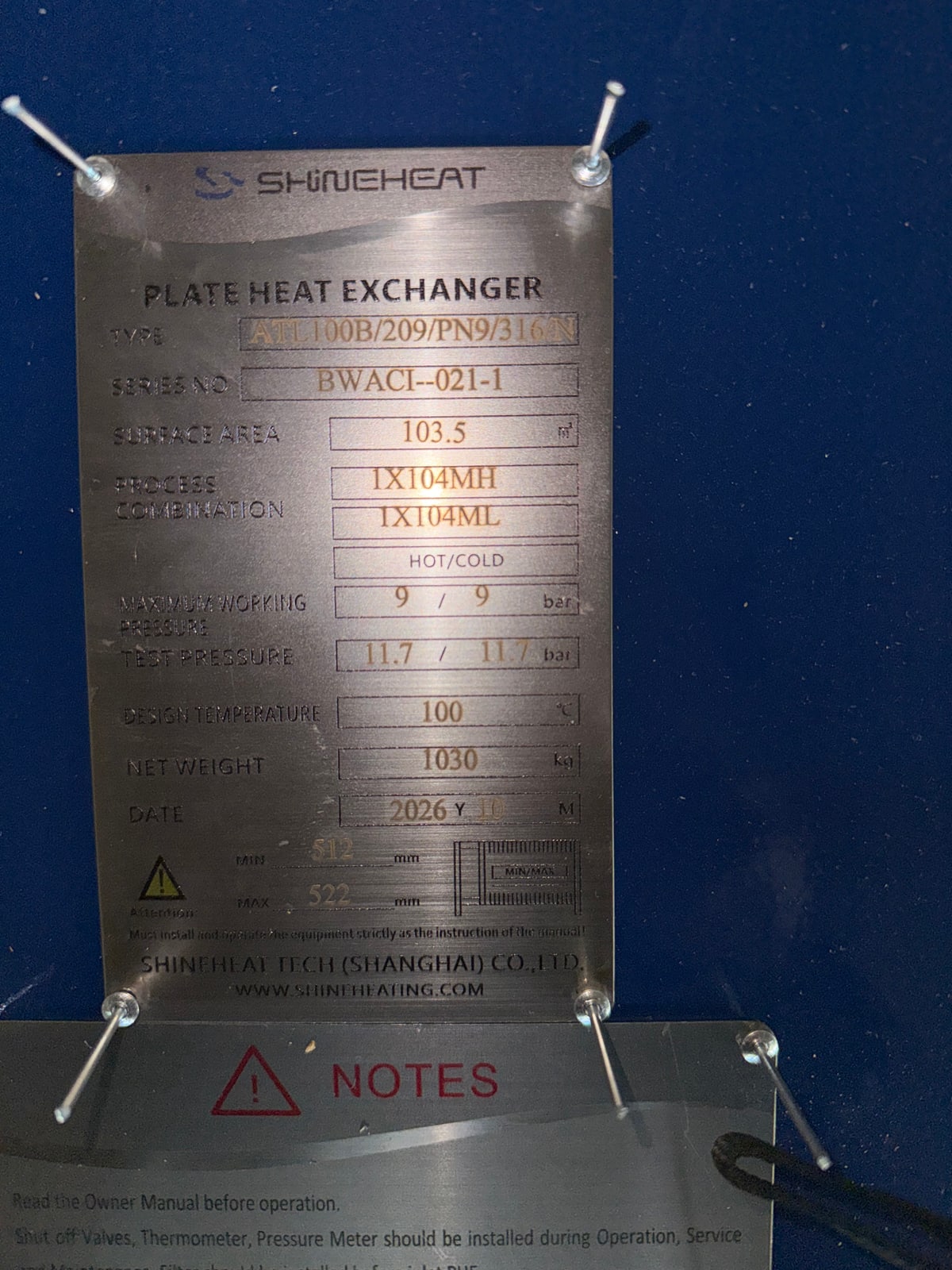

Original SHINEHEAT nameplate photograph for one pre-assembled heat exchanger reference

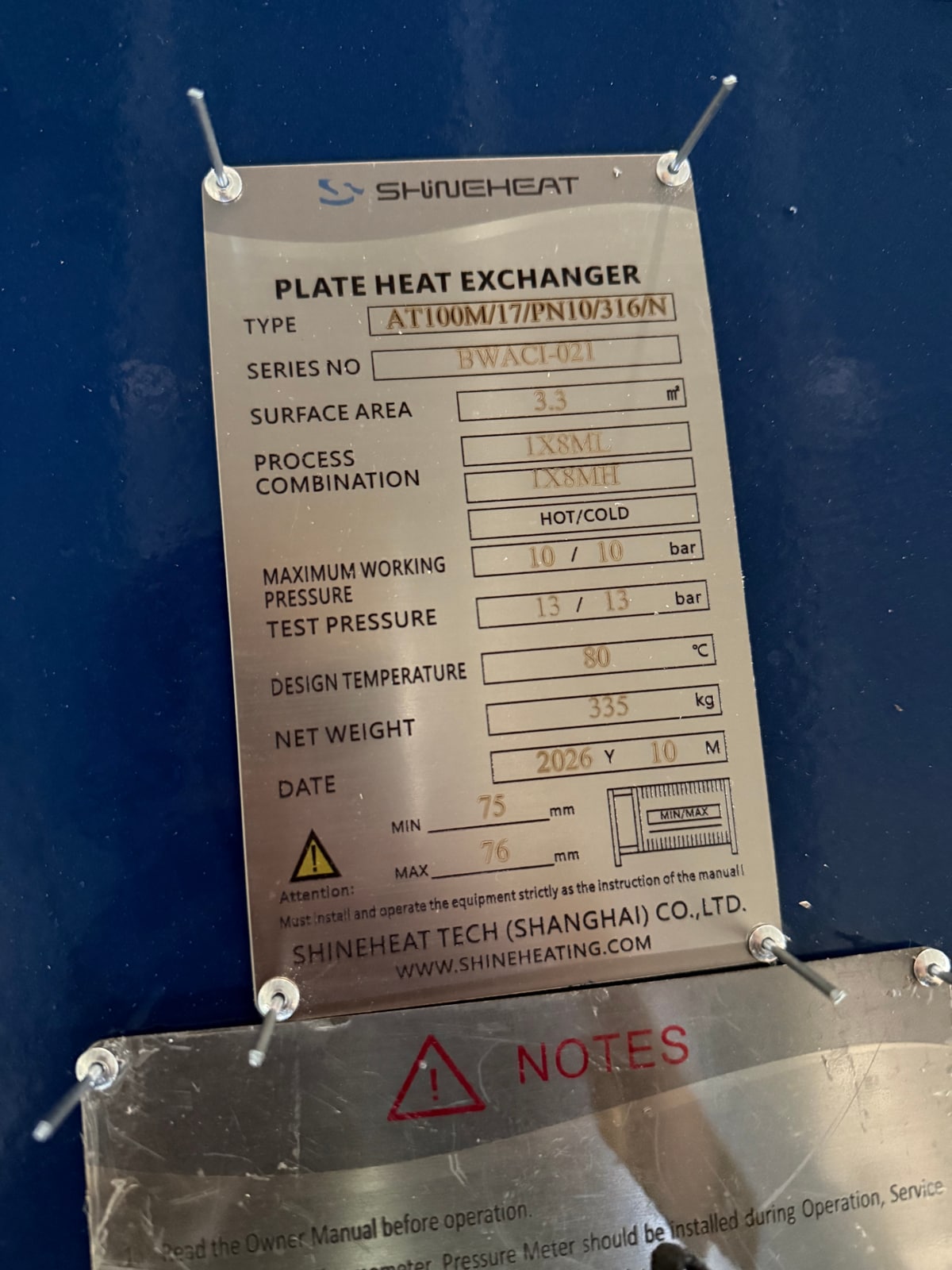

Original SHINEHEAT nameplate photograph for a second pre-assembled heat exchanger reference

Questions about pre-assembled PHE delivery

What is supplied in a pre-assembled plate heat exchanger package?

The agreed scope can include a plate-and-gasket pack and a separate optional frame-accessory kit. The quotation and packing list define the actual components supplied.

Is a packaged plate pack ready to operate immediately?

A plate pack shipped separately from its frame still requires site assembly. Plate sequence, gasket condition, connections, final compressed dimension and the agreed testing procedure must be checked before operation.

What information is needed to select a plate pack and frame kit?

Send the existing nameplate or design basis, plate model and count, plate arrangement, compressed dimension, frame and nozzle drawings, fluids, flow rates, temperatures, design pressures and delivery requirements.

Information needed for selection and quotation

Send the nameplate or design basis, plate model and count, plate arrangement, compressed dimension, GA/nozzle drawings, hot- and cold-side operating data, design limits and destination. Agree the packing list, handling, site assembly and final testing scope before shipment.

Send your pre-assembled PHE requirements

Pre-assembled plate heat exchanger product details · Gasketed plate heat exchangers · Replacement plates and gaskets

Pre-assembled Plate Heat Exchanger
